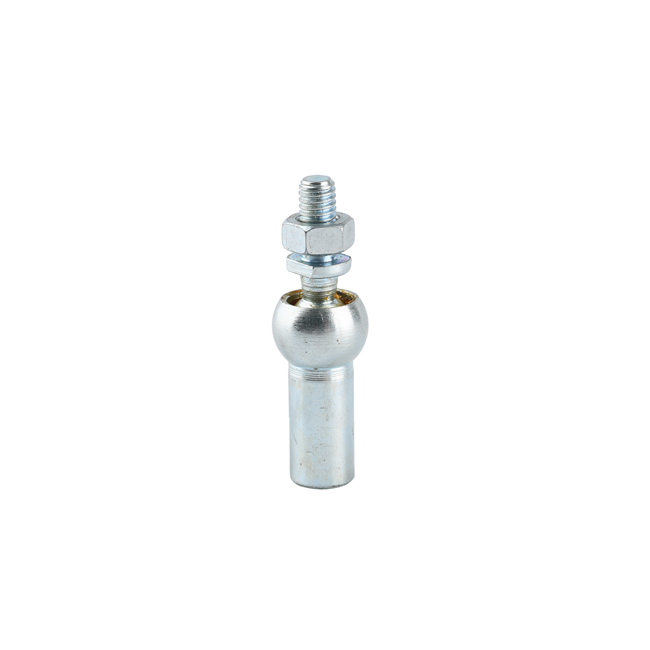

Axial Joint Similar To DIN71802 - AJ

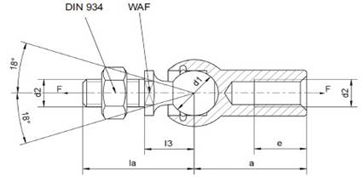

Part No.	d1	d2	a	la	l3	e	WAF	Extraction force	Weight
								F in N	Kg/pcs
AJ8	8	M5	22	19.2	9	10.2	7	30	0.015
AJ10	10	M6	25	23.5	11	11.5	8	40	0.025
AJ13	13	M8	30	29.5	13	14	11	60	0.053
AJ16	16	M10	35	36	16	15.5	13	80	0.104
AJ19	19	M14x1.5	45	48	20	21.5	16	100	0.221

Material: low carbon steel, alternative,stainless steel 304 or 316.

Surface protection: zinc plate,withe/white-blue or yellow passivated.

The manufacturer reserves the right to supply the ball socket with or without spanner surface.

Left hand thread in the housing are available.

Dimensions are in mm.

Special versions upon request.
