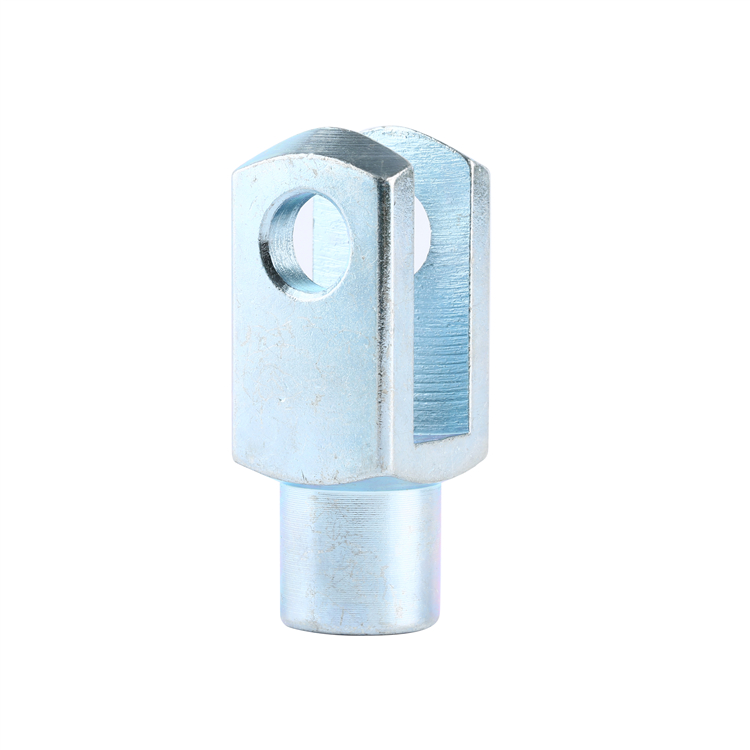

Clevis DIN71752-G

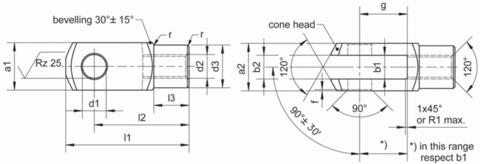

Part No.	d1	g	a1	a2	b1	b2		d2		d3	f	l1	l2		l3	r	Weight
	H9	±0.5	h11	+0.3 -0.16	B13			Regular thread	fine-pitch thread			±0.5			±0.3		(kg)/piece
G4x8	4	8	8	8	4	4	B13	M4x0.7		8	0.5	21	16	±0.3	6	0.5	0.005
G4x16	4	16	8	8	4	4		M4x0.7		8	0.5	29	24		6	0.5	0.007
G5x10	5	10	10	10	5	5		M5x0.8		9	0.5	26	20		7.5	0.5	0.009
G5x20	5	20	10	10	5	5		M5x0.8		9	0.5	36	30		7.5	0.5	0.013
G6x12	6	12	12	12	6	6		M6x1.0		10	0.5	31	24		9	0.5	0.015
G6x24	6	24	12	12	6	6		M6x1.0		10	0.5	43	36	±0.4	9	0.5	0.021
G8x16	8	16	16	16	8	8		M8x1.25		14	0.5	42	32		12	0.5	0.037
G8x16FG	8	16	16	16	8	8		M8x1.0		14	0.5	42	32		12	0.5	0.037
G8x32	8	32	16	16	8	8			M8x1.25	14	0.5	58	48		12	0.5	0.054
G8x32FG	8	32	16	16	8	8		M8x1.0		14	0.5	58	48		12	0.5	0.054
G10x20	10	20	20	20	10	10		M10x1.5		18	0.5	52	40		15	0.5	0.074
G10x20FG	10	20	20	20	10	10			M10x1.25	18	0.5	52	40		15	0.5	0.074
G10x40	10	40	20	20	10	10	+0.70 +0.15	M10x1.5		18	0.5	72	60		15	0.5	0.116
G10x40FG	10	40	20	20	10	10			M10x1.25	18	0.5	72	60		15	0.5	0.116
G12x24	12	24	24	24	12	12		M12x1.75		20	0.5	62	48		18	0.5	0.121
G12x24FG	12	24	24	24	12	12			M12x1.25	20	0.5	62	48		18	0.5	0.121
G12x48	12	48	24	24	12	12		M12x1.75		20	0.5	86	72		18	0.5	0.175
G12x48FG	12	48	24	24	12	12			M12x1.25	20	0.5	86	72		18	0.5	0.175
G14x28	14	28	27	27	14	14		M14x2.0		24	1	72	56		22.5	1	0.178
G14x28FG	14	28	27	27	14	14			M14x1.5	24	1	72	56		22.5	1	0.178
G14x56	14	56	27	27	14	14		M14x2.0		24	1	101	85		22.5	1	0.258
G14x56FG	14	56	27	27	14	14			M14x1.5	24	1	101	85		22.5	1	0.258
G16x32	16	32	32	32	16	16		M16x2.0		26	1	83	64	±0.4	24	1	0.282
G16x32FG	16	32	32	32	16	16			M16x1.5	26	1	83	64		24	1	0.282
G16x64	16	64	32	32	16	16		M16x2.0		26	1	115	96		24	1	0.411
G16x64FG	16	64	32	32	16	16			M16x1.5	26	1	115	96		24	1	0.411
G18x36	18	36	36	36	18	18		M18x2.5		30	1	94	72		27	1.5	0.390
G18x36FG	18	36	36	36	18	18			M18x1.5	30	1	94	72		27	1.5	0.390
G20x40	20	40	40	40	20	20		M20x2.5		34	1	105	80		30	1.5	0.550
G20x40FG	20	40	40	40	20	20			M20x1.5	34	1	105	80		30	1.5	0.550
G20x80	20	80	40	40	20	20	+0.70 +0.15	M20x2.5		34	1	145	120		30	1.5	0.800
G20x80FG	20	80	40	40	20	20			M20x1.5	34	1.5	145	120		30	1.5	0.800
G25x50	25	50	50	50	25	25		M24x3.0		42	1.5	132	100		36	1.5	1.100
G25x50FG	25	50	50	50	25	25			M24x2.0	42	1.5	132	100		36	1.5	1.100
G28x56	28	56	55	55	28	28		M27x3.0		48	1.5	148	112		40	2	1.500
G28x56FG	28	56	55	55	28	28			M27x2.0	48	1.5	148	112		40	2	1.500
G30x54FG	30	54	55	55	30	30			M27x2.0	48	1.5	148	110		40	2	1.440
G30x60	30	60	60	60	30	30		M30x3.5		52	1.5	160	120		42	2	1.970
G30x60FG	30	60	60	60	30	30			M30x2.0	52	1.5	160	120	±0.4	42	2	1.970
G35x54FG	35	54	70	70	35	35			M36x2.0	60	2	188	144		54	3	2.930
G35x72	35	72	70	70	35	35		M36x4.0		60	2	188	144		54	3	2.930
G35x72FG	35	72	70	70	35	35			M36x2.0	60	2	188	144		54	3	2.930
G36x72	35	72	70	70	36	36		M36x4.0		60	2	188	144		54	3	2.930
G36x72FG	35	72	70	70	36	36			M36x2.0	60	2	188	144		54	3	2.930
G40x84	40	84	85	85	40	40		M42x4.5		70	3	232	168		63.5	5	5.640
G40x84FG	40	84	85	85	40	40			M42x2.0	70	3	232	168		63.5	5	5.640
G42x84	42	84	85	85	42	42		M42x4.5		70	3	232	168		63.5	5	5.340
G42x84FG	42	84	85	85	42	42			M42x2.0	70	3	232	168		63.5	5	5.340
G50x96	50	96	96	96	50	50		M48x5.0		82	3	265	192		73	5	7.860
G50x96FG	50	96	96	96	50	50			M48x2.0	82	3	265	192		73	5	7.860

Code for thread

Regular thread (no code)

Regular thread,left-handed (LH)

Fine-pitch thread (FG)

Fine-pitch thread,left-handed (FGLH)

Material

low carbon steel Q235A or higher level steel

Surface protection:

Blue zinc plated,yellow zinc plated,phosphatised oiled,chromeplated,or upon request

Alternative: stainless steel AISI304,316,316L,etc
