GAC..S

Angular Contact Spherical Plain Bearings,GAC..S series

  • Spherical Plain Bearings

  • Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining

  • Ningbo, China

  • Ningbo Lehonb Machinery Co.,Ltd

Availability:
Quantity:
Inquire

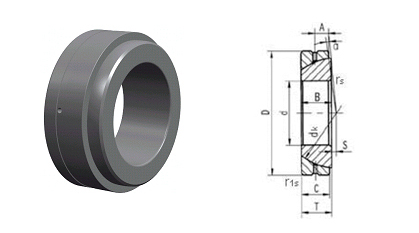

GAC..S


Bearing No. Dimensions mm Load Ratings kN Weight

d D B C T dk S A rs,r1s α Dyn Stat  kg









min ≈ C Co
GAC25S 25 47 15 14 15 42 0.6 7.5 1 2.5 50 250 0.148
GAC28S 28 52 16 15 16 47 1 8 1 2 60 300 0.186
GAC30S 30 55 17 15 17 49.5 1.3 8.5 1 4.5 63 315 0.208
GAC32S 32 58 17 16 17 52 2 8.5 1 2 71 354 0.241
GAC35S 35 62 18 16 18 55.5 2.1 9 1 4 78 390 0.268
GAC40S 40 68 19 17 19 62 2.8 9.5 1 3.5 92 463 0.327
GAC45S 45 75 20 18 20 68.5 3.5 10 1 3 108 540 0.416
GAC50S 50 80 20 19 20 74 4.3 10 1 1.5 123 618 0.455
GAC55S 55 90 23 20 23 82 5 11.5 1.1 4 144 721 0.645
GAC60S 60 95 23 21 23 88.5 5.7 11.5 1.1 2.5 163 817 0.714
GAC65S 65 100 23 22 23 93.5 6.5 11.5 1.1 1 180 905 0.759
GAC70S 70 110 25 23 25 102 7.2 12.5 1.1 2 206 1030 1.04
GAC75S 75 115 25 24 25 107 7.9 12.5 1.1 1 220 1129 1.12
GAC80S 80 125 29 25.5 29 115 8.6 14.5 1.1 3.5 258 1290 1.54
GAC85S 85 130 29 26.5 29 122 9.4 14.5 1.1 2 284 1422 1.61
GAC90S 90 140 32 28 32 129 10.1 16 1.5 3.5 316 1580 2.09
GAC95S 95 145 32 29.5 32 135 10.8 16 1.5 2 350 1750 2.22
GAC100S 100 150 32 31 32 141 11.6 16 1.5 0.5 384 1923 2.34
GAC105S 105 160 35 32.5 35 148 12.3 17.5 2 2 423 2116 2.93
GAC110S 110 170 38 34 38 155 13 19 2 3 463 2318 3.68
GAC120S 120 180 38 37 38 168 14.5 19 2 0.5 547 2735 3.97
GAC130S 130 200 45 43 45 188 18 19 2.5 1 710 3550 5.92
GAC140S 140 210 45 43 45 198 19 19 2.5 1 740 3740 6.33
GAC150S 150 225 48 46 48 211 20 20.5 3 1 850 4270 8.01
GAC160S 160 240 51 49 51 225 20 22 3 1 970 4850 9.42
GAC170S 170 260 57 55 57 246 21 27 3 1 1190 5950 12.3
GAC180S 180 280 64 61 64 260 21 28 3 1 1395 6970 17.4
GAC190S 190 290 64 62 64 275 26 30 3 0.5 1500 7500 18.2
GAC200S 200 310 70 66 70 290 26 30 3 1.5 1680 8420 22.5




 -Bearing rings of carbon chromium steel,hardened and phosphated,

 -Sliding surface treated with MoS2.
