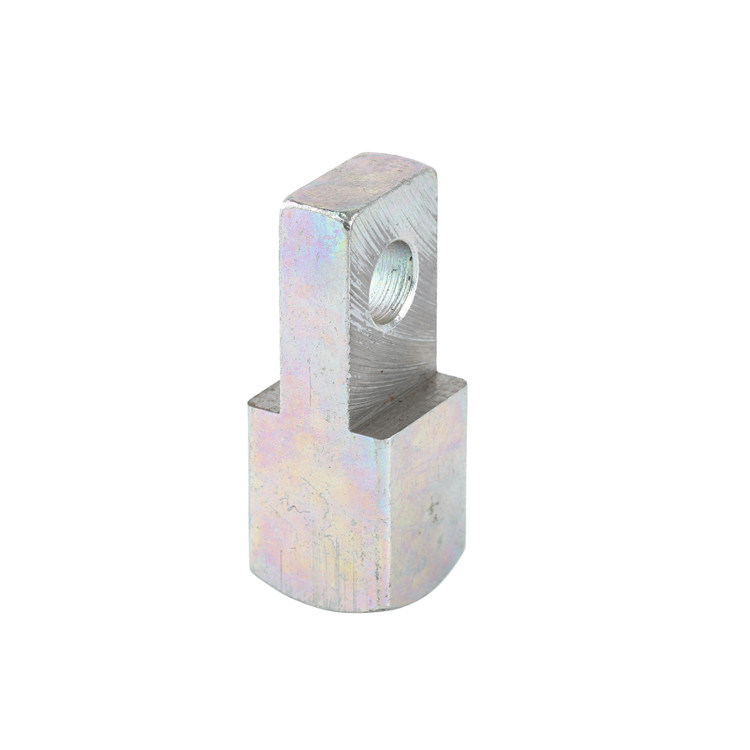

Fittings for Clevis Joint
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
Availability: | |
---|---|
Quantity: | |

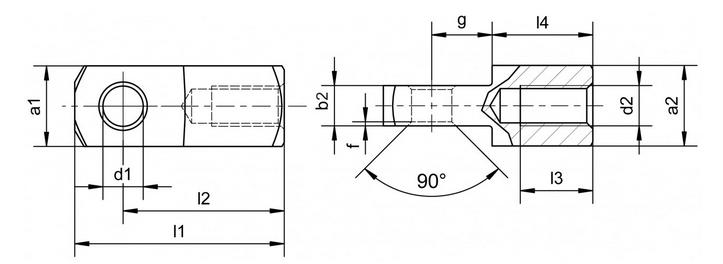

Part No. | d1 | g | a1 | a2 | b | d2 | f | l1 | l2 | l3 | l4 | Weight | |
H9 | ±0.5 | h11 | h11 | -0.2 | Regular thread | fine-pitch thread | ±0.2 | ±0.5 | ±0.3 | ±0.3 | ±0.2 | (kg)/piece | |
MP4x8 | 4 | 6 | 8 | 8 | 4 | M4x0.7 | 0.5 | 21 | 16 | 6 | 10 | 0.006 | |
MP5x10 | 5 | 7.5 | 10 | 10 | 5 | M5x0.8 | 0.5 | 26 | 20 | 8 | 12.5 | 0.012 | |
MP6x12 | 6 | 9 | 12 | 12 | 6 | M6x1.0 | 0.5 | 31 | 24 | 11 | 15 | 0.021 | |
MP8x16 | 8 | 12 | 16 | 16 | 8 | M8x1.25 | 0.5 | 42 | 32 | 14 | 20 | 0.051 | |
MP8x16FG | 8 | 12 | 16 | 16 | 8 | M8x1.0 | 0.5 | 42 | 32 | 14 | 20 | 0.051 | |
MP10x20 | 10 | 15 | 20 | 20 | 10 | M10x1.5 | 0.5 | 52 | 40 | 18 | 25 | 0.098 | |
MP10x20FG | 10 | 15 | 20 | 20 | 10 | M10x1.25 | 0.5 | 52 | 40 | 18 | 25 | 0.098 | |
MP12x24 | 12 | 18 | 24 | 24 | 12 | M12x1.75 | 0.5 | 62 | 48 | 22 | 30 | 0.168 | |
MP12x24FG | 12 | 18 | 24 | 24 | 12 | M12x1.25 | 0.5 | 62 | 48 | 22 | 30 | 0.167 | |
MP14x28 | 14 | 21 | 27 | 27 | 14 | M14x2.0 | 1 | 72 | 56 | 25 | 35 | 0.247 | |
MP14x28FG | 14 | 21 | 27 | 27 | 14 | M14x1.5 | 1 | 72 | 56 | 25 | 35 | 0.245 | |
MP16x32 | 16 | 24 | 32 | 32 | 16 | M16x2.0 | 1 | 83 | 64 | 30 | 40 | 0.397 | |
MP16x32FG | 16 | 24 | 32 | 32 | 16 | M16x1.5 | 1 | 83 | 64 | 30 | 40 | 0.395 | |
MP20x40 | 20 | 30 | 40 | 40 | 20 | M20x2.5 | 1 | 105 | 80 | 38 | 50 | 0.783 | |
MP20x40FG | 20 | 30 | 40 | 40 | 20 | M20x1.5 | 1 | 105 | 80 | 38 | 50 | 0.776 |
Code for thread
Regular thread no code
Regular thread,left-handed LH
Fine-pitch thread FG
Fine-pitch thread,left-handed FGLH
Material
Low carbon steel Q235A or high level steel
Surface protection:
Blue zinc plated,yellow zinc plated,phosphatised oiled,chromeplated,or upon request
Alternative: stainless steel AISI304,316,316L,etc
Part No. | d1 | g | a1 | a2 | b | d2 | f | l1 | l2 | l3 | l4 | Weight | |
H9 | ±0.5 | h11 | h11 | -0.2 | Regular thread | fine-pitch thread | ±0.2 | ±0.5 | ±0.3 | ±0.3 | ±0.2 | (kg)/piece | |
MP4x8 | 4 | 6 | 8 | 8 | 4 | M4x0.7 | 0.5 | 21 | 16 | 6 | 10 | 0.006 | |
MP5x10 | 5 | 7.5 | 10 | 10 | 5 | M5x0.8 | 0.5 | 26 | 20 | 8 | 12.5 | 0.012 | |
MP6x12 | 6 | 9 | 12 | 12 | 6 | M6x1.0 | 0.5 | 31 | 24 | 11 | 15 | 0.021 | |
MP8x16 | 8 | 12 | 16 | 16 | 8 | M8x1.25 | 0.5 | 42 | 32 | 14 | 20 | 0.051 | |
MP8x16FG | 8 | 12 | 16 | 16 | 8 | M8x1.0 | 0.5 | 42 | 32 | 14 | 20 | 0.051 | |
MP10x20 | 10 | 15 | 20 | 20 | 10 | M10x1.5 | 0.5 | 52 | 40 | 18 | 25 | 0.098 | |
MP10x20FG | 10 | 15 | 20 | 20 | 10 | M10x1.25 | 0.5 | 52 | 40 | 18 | 25 | 0.098 | |
MP12x24 | 12 | 18 | 24 | 24 | 12 | M12x1.75 | 0.5 | 62 | 48 | 22 | 30 | 0.168 | |
MP12x24FG | 12 | 18 | 24 | 24 | 12 | M12x1.25 | 0.5 | 62 | 48 | 22 | 30 | 0.167 | |
MP14x28 | 14 | 21 | 27 | 27 | 14 | M14x2.0 | 1 | 72 | 56 | 25 | 35 | 0.247 | |
MP14x28FG | 14 | 21 | 27 | 27 | 14 | M14x1.5 | 1 | 72 | 56 | 25 | 35 | 0.245 | |
MP16x32 | 16 | 24 | 32 | 32 | 16 | M16x2.0 | 1 | 83 | 64 | 30 | 40 | 0.397 | |
MP16x32FG | 16 | 24 | 32 | 32 | 16 | M16x1.5 | 1 | 83 | 64 | 30 | 40 | 0.395 | |
MP20x40 | 20 | 30 | 40 | 40 | 20 | M20x2.5 | 1 | 105 | 80 | 38 | 50 | 0.783 | |
MP20x40FG | 20 | 30 | 40 | 40 | 20 | M20x1.5 | 1 | 105 | 80 | 38 | 50 | 0.776 |
Code for thread
Regular thread no code
Regular thread,left-handed LH
Fine-pitch thread FG
Fine-pitch thread,left-handed FGLH
Material
Low carbon steel Q235A or high level steel
Surface protection:
Blue zinc plated,yellow zinc plated,phosphatised oiled,chromeplated,or upon request
Alternative: stainless steel AISI304,316,316L,etc
