DIN Standard Ball Joints
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
|

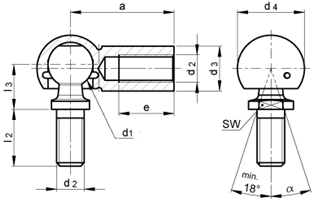

| Part No. | d1 | d2 | a | d3 | d4 | e | l2 | l3 | SW | α | Weight |
| h9 | ±0,3 | ±0,5 | ±0,5 | min. | ±0,3 | ±0,3 | h14 | ≈ | kg/piece | ||
| CS8M5SS | 8 | M 5 | 22 | 8 | 12,8 | 10,2 | 10,2 | 9 | 7 | 10° | 0.152 |
| CS10M6SS | 10 | M 6 | 25 | 10 | 14,8 | 11,5 | 12,5 | 11 | 8 | 15° | 0.252 |
| CS13M8SS | 13 | M 8 | 30 | 13 | 19,3 | 14 | 16,5 | 13 | 11 | 15° | 0.531 |
| CS16M10SS | 16 | M 10 | 35 | 16 | 24 | 15,5 | 20 | 16 | 13 | 15° | 0.104 |
| CS16M12SS | M 12 | ||||||||||
| CS19M14SS | 19 | M 14 x 1,5 | 45 | 22 | 30 | 21,5 | 28 | 20 | 16 | 15° | 0.221 |
| M 14 | |||||||||||
| CS19M16SS | M 16 |
Ball Housing: Stainless steel AISI304,316,316L
Ball Stud: Stainless steel AISI304,316,316L
Clip: Stainless steel AISI304,316,etc.
For left-hand thread,please add LH(ex.CS10M6SSLH)
For fine-pitch thread,please add FG(ex.CS16M10SSFG) or CS16M10x1.25SS
Special type upon request
|
|
| Part No. | d1 | d2 | a | d3 | d4 | e | l2 | l3 | SW | α | Weight |
| h9 | ±0,3 | ±0,5 | ±0,5 | min. | ±0,3 | ±0,3 | h14 | ≈ | kg/piece | ||
| CS8M5SS | 8 | M 5 | 22 | 8 | 12,8 | 10,2 | 10,2 | 9 | 7 | 10° | 0.152 |
| CS10M6SS | 10 | M 6 | 25 | 10 | 14,8 | 11,5 | 12,5 | 11 | 8 | 15° | 0.252 |
| CS13M8SS | 13 | M 8 | 30 | 13 | 19,3 | 14 | 16,5 | 13 | 11 | 15° | 0.531 |
| CS16M10SS | 16 | M 10 | 35 | 16 | 24 | 15,5 | 20 | 16 | 13 | 15° | 0.104 |
| CS16M12SS | M 12 | ||||||||||
| CS19M14SS | 19 | M 14 x 1,5 | 45 | 22 | 30 | 21,5 | 28 | 20 | 16 | 15° | 0.221 |
| M 14 | |||||||||||
| CS19M16SS | M 16 |
Ball Housing: Stainless steel AISI304,316,316L
Ball Stud: Stainless steel AISI304,316,316L
Clip: Stainless steel AISI304,316,etc.
For left-hand thread,please add LH(ex.CS10M6SSLH)
For fine-pitch thread,please add FG(ex.CS16M10SSFG) or CS16M10x1.25SS
Special type upon request
