Fittings for Clevis Joint
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
|
| Part No. | Dimensions/mm | Weight | ||
| d | D | B | ≈KG/1000PCS | |
| PB-R4 | 4.3 | 7.5 | 0.8 | 0.15 |
| PB-R5 | 5.3 | 9.5 | 1.0 | 0.39 |
| PB-R6 | 6.4 | 11 | 1.6 | 0.7 |
| PB-R8 | 8.4 | 15 | 1.6 | 1.52 |
| PB-R10 | 10.5 | 18 | 1.6 | 2.11 |
| PB-R12 | 13 | 20 | 2.0 | 2.85 |
| PB-R14 | 15 | 24 | 2.0 | 4.30 |
| PB-R16 | 17.0 | 27.0 | 2.0 | 5.42 |
| PB-R20 | 21.0 | 33.0 | 2.5 | 9.98 |
| PB-R25 | 25.0 | 39.0 | 4.0 | 14.50 |

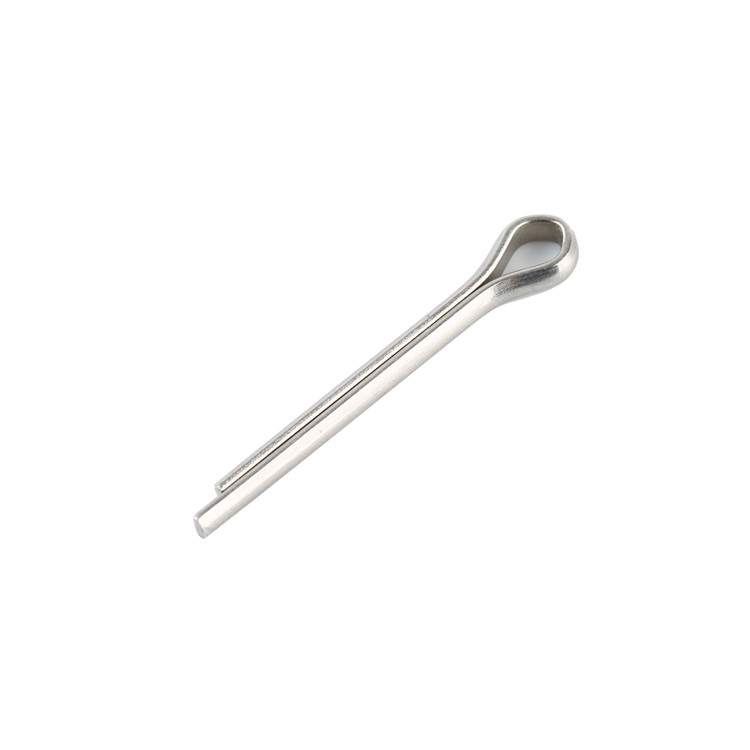

| Part No. | Dimensions/mm | ||||
| d | a | c | f | L | |
| PB-C4 | 1.5 | 1.0 | 2.5 | 1.5 | 10 |
| PB-C5/6 | 3.6 | 1.6 | 4.0 | 2.5 | 10 |
| PB-C8 | 5.8 | 2.0 | 6.4 | 3.2 | 16 |
| PB-C10 | 7.4 | 3.2 | 8.0 | 4.0 | 20 |
| PB-C12/16 | 7.4 | 4.0 | 8.0 | 4.0 | 32 |
| PB-C20/25 | 9.2 | 4.0 | 10.0 | 4.0 | 32 |
Material
PC-R,low carbon steel
PC-C,low carbon steel
Surface protection: Zinc plating,passivated in white,white-blue or yellow
Alternative: stainless steel
Special requests are available
|
|
