Zinc alloy ball joint-SQZ

  • Zinc Alloy Ball Joints
  • Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
  • Ningbo, China
  • Ningbo Lehonb Machinery Co.,Ltd
Quantity:

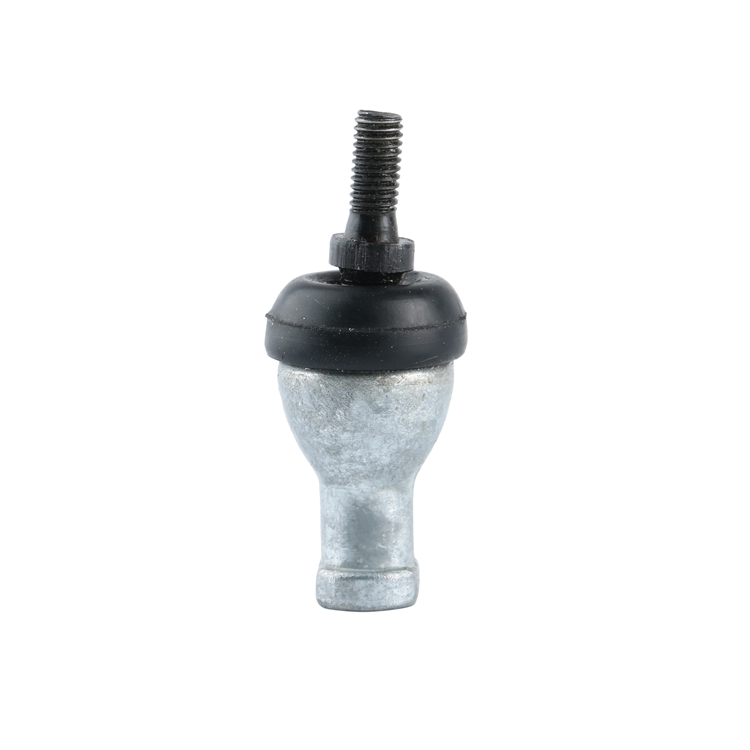

Zinc alloy ball joint-SQZ- Lehonb

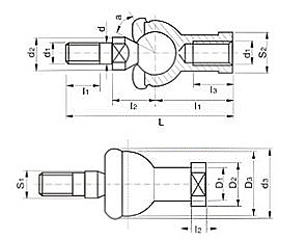

Zinc alloy ball joint-SQZ


Part No. d d1 d2 d3 l1 l2 S1 L L1 L2 L3 D1 D2 D3 S2 a Load ratings kN Weight     kg
SQZ5RS 5 M5x0.8 9 20 8 11 7 46 24 4.0  12 9 11 17 9 15 2.8  0.025
SQZ6RS 6 M6x1.0 10 20 11 12.2 8 55.2 28 5.0  15 10 13 20 11 15 3.7  0.041
SQZ8RS 8 M8x1.25 12 24 12 16 10 65 32 5.0  16 12.5 16 24 14 15 5.8  0.075
SQZ10RS 10 M10x1.25 14 30 15 19.5 11 74.5 35 6.5  18 15 19 28 17 15 8.4  0.120
SQZ10RS-1 10 M10x1.5 14 30 21 19.5 11 80.5 35 6.5  18 15 19 28 17 15 8.4  0.120
SQZ12RS 12 M12x1.25 17 32 17 21 15 84 40 6.5  20 17.5 22 32 19 15 11.0  0.180
SQZ12RS-1 12 M12x1.75 17 32 24 21 15 91 40 6.5  20 17.5 22 32 19 15 11.0  0.180
SQZ14RS 14 M14x1.5 19 38 22 23.5 17 103 45 8.0  25 20 25 36 22 11 15.0  0.270
SQZ14RS-1 14 M14x2.0 19 38 28 23.5 17 109 45 8.0  25 20 25 36 22 11 15.0  0.270
SQZ16RS 16 M16x1.5 22 44 23 25.5 19 112 50 8.0  27 22 27 40 22 11 15.0  0.360
SQZ16RS-1 16 M16x2.0 22 44 29 25.5 19 118 50 8.0  27 22 27 40 22 11 15.0  0.360
SQZ18RS 18 M18x1.5 23 45 25 31 20 130.5 58 10.0  32 25 31 45 27 11 19.0  0.540
SQZ20RS 20 M20x1.5 27 50 25 29 24 133 63 10.0  38 27.5 34 45 30 7.5 19.0  0.570
SQZ22RS 22 M22x1.5 27 52 26 33 24 145 70 12.0  43 30 37 50 32 7.5 23.0  0.760



Material

Housing: High strength zinc alloy

Ball: bearing steel GCr15,equivalent to steel SAE52100

Shank: alloy steel 40Cr

Dust Cover: NBR rubber

Left hand thread,please add suffix'L',e.g.SQZ16LRS

Grease is seales in the boot,high wear resistance

Work Temperature,-40°C-120°C

All dimension are in mm
