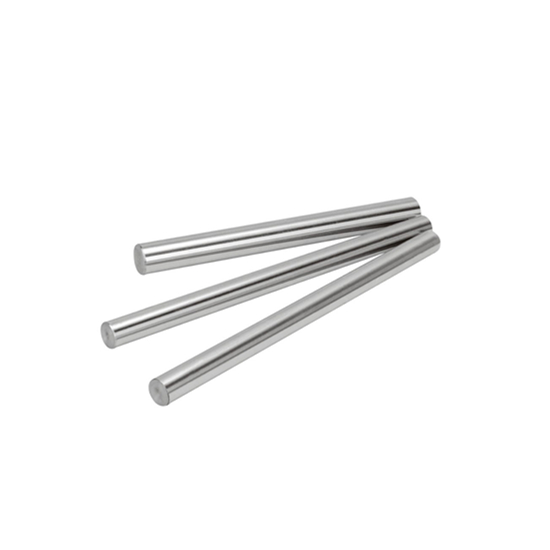

Linear Shaft

Eyelets ,ED series

  • Machining Parts

  • Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining

  • Ningbo, China

  • Ningbo Lehonb Machinery Co.,Ltd

Availability:
Quantity:
Inquire

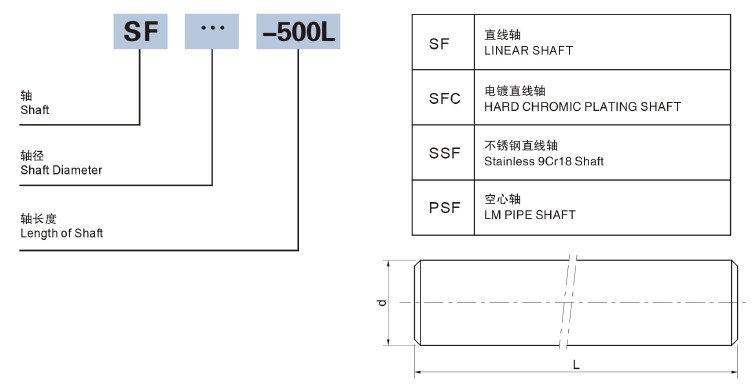

Linear Shaft

Linear Shaft




Part No.		  Shaft Diameter Dimensions(mm)
d(mm)  Tolerance (μm) 100 200 300 400 500 600 700 800 1000 1200 1300 1500 2000
  SF6 Ф6 ﹣0.004/﹣0.012 ○ ○ ○ ○ ◎ — — — — — — — —
  SF8 Ф8 ﹣0.005
﹣0.014		 ○ ○ ○ ○ ◎ — — — — — — — —
  SF10 Ф10 ○ ○ ○ ○ ○ ○ ○ ○ ◎ ◎ ○ ◎ —
  SF12 Ф12 ﹣0.006
﹣0.017		 — ○ ○ ○ ○ ○ ○ ○ ◎ ◎ ○ ◎ —
  SF13 Ф13 — ○ ○ ○ ○ ○ ○ ○ ◎ ◎ ○ ◎ —
  SF16 Ф16 — ○ ○ ○ ○ ○ ○ ○ ◎ ◎ ○ ◎ —
  SF20 Ф20 ﹣0.007
﹣0.020		 — ○ ○ ○ ○ ○ ○ ○ ◎ ◎ ○ ◎ ◎
  SF25 Ф25 — ○ ○ ○ ○ ○ ○ ○ ◎ ◎ ○ ◎ ◎
  SF30 Ф30 — — ○ ○ ○ ○ ○ ○ ◎ ◎ ○ ◎ ◎
  SF35 Ф35 ﹣0.009
﹣0.025		 — — — — ○ ○ ○ ○ ◎ ◎ ○ ◎ ◎
  SF40 Ф40 — — — — ○ ○ ○ ○ ◎ ◎ ○ ◎ ◎
  SF50 Ф50 — — — — ○ ○ ○ ○ ◎ ◎ ○ ◎ ◎
  SF60 Ф60 ﹣0.010
﹣0.029		 — — — — — — — — ◎ ◎ ○ ◎ ◎
  SF80 Ф80 — — — — — — — — ◎ ◎ ○ ◎ ◎




  • Material : High carbon chromium bearing steel

  • Hardness : HRC58~64

  • Hardened depth : 0.8~2.5mm

  • Roughness : Ra0.8

  • Straightness :0.05mm/300mm
