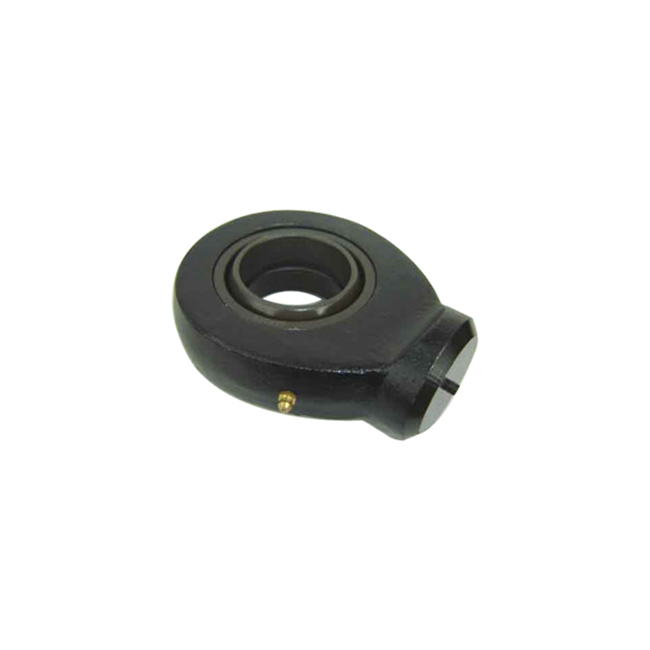

Hydraulic rod ends
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
|

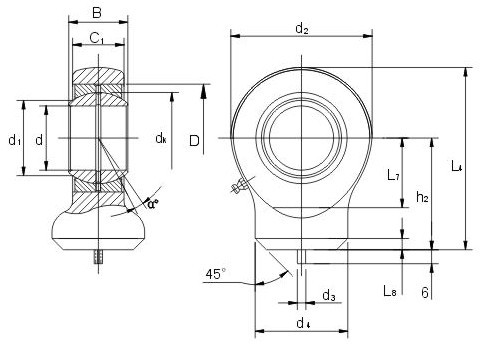

| Part No | Dimensions mm | Load ratings kN | Weight kg | ||||||||||||||
| d | d3 | d4 | B | C1 | d2 | L7 | L8 | h2 | L4 | dk | d1 | D | a | dyn | stat | ||
| min | ≈ | C | C0 | ||||||||||||||
| GK10DO* | 10 | 3 | 38.5 | 9 | 7 | 29 | 15 | 1.5 | 24 | 38.5 | 16 | 13.2 | 19 | 12 | 8.2 | 15.6 | 0.041 |
| GK12DO | 12 | 3 | 44 | 10 | 8 | 34 | 18 | 1.5 | 27 | 44 | 18 | 15 | 22 | 11 | 10.8 | 21.6 | 0.066 |
| GK15DO | 15 | 4 | 51 | 12 | 10 | 40 | 20 | 2 | 31 | 51 | 22 | 18.4 | 26 | 8 | 17.0 | 32.0 | 0.120 |
| GK17DO | 17 | 4 | 58 | 14 | 11 | 46 | 23 | 2 | 35 | 58 | 25 | 20.7 | 30 | 10 | 21.2 | 40.0 | 0.190 |
| GK20DO | 20 | 4 | 64.5 | 16 | 13 | 53 | 27.5 | 2 | 38 | 64.5 | 29 | 24.2 | 35 | 9 | 30.0 | 54.0 | 0.230 |
| GK25DO | 25 | 4 | 77 | 20 | 17 | 64 | 33 | 3 | 45 | 77 | 35.5 | 29.3 | 42 | 7 | 48.0 | 72.0 | 0.430 |
| GK30DO | 30 | 4 | 87.5 | 22 | 19 | 73 | 37.5 | 3 | 51 | 87.5 | 40.7 | 34.2 | 47 | 6 | 62.0 | 95.0 | 0.640 |
| GK35DO | 35 | 4 | 102 | 25 | 21 | 82 | 43 | 3 | 61 | 102 | 47 | 39.8 | 55 | 6 | 80.0 | 125.0 | 0.960 |
| GK40DO | 40 | 4 | 115 | 28 | 23 | 92 | 48 | 4 | 69 | 115 | 53 | 45 | 62 | 7 | 100.0 | 156.0 | 1.300 |
| GK45DO | 45 | 6 | 128 | 32 | 27 | 102 | 52 | 4 | 77 | 128 | 60 | 50.8 | 68 | 7 | 127.0 | 208.0 | 1.800 |
| GK50DO | 50 | 6 | 144 | 35 | 30 | 112 | 59 | 4 | 88 | 144 | 66 | 55.9 | 75 | 6 | 156.0 | 250.0 | 2.500 |
| GK60DO | 60 | 6 | 167.5 | 44 | 38 | 135 | 72.5 | 4 | 100 | 167.5 | 80 | 66.8 | 90 | 6 | 245.0 | 390.0 | 3.900 |
| GK70DO | 70 | 6 | 195 | 49 | 42 | 160 | 86 | 5 | 115 | 195 | 92 | 77.9 | 105 | 6 | 315.0 | 510.0 | 6.600 |
| GK80DO | 80 | 6 | 231 | 55 | 47 | 180 | 98 | 5 | 141 | 231 | 105 | 89.4 | 120 | 6 | 400.0 | 620.0 | 8.700 |
-Rod end housing with right or left-hand female thread.
-It is made up of a radial spherical plain bearing GE..ES or GE..ES 2RS and rod end housing.
-Rod end housing with a lubricating hole or grease nipple.
|
|
| Part No | Dimensions mm | Load ratings kN | Weight kg | ||||||||||||||
| d | d3 | d4 | B | C1 | d2 | L7 | L8 | h2 | L4 | dk | d1 | D | a | dyn | stat | ||
| min | ≈ | C | C0 | ||||||||||||||
| GK10DO* | 10 | 3 | 38.5 | 9 | 7 | 29 | 15 | 1.5 | 24 | 38.5 | 16 | 13.2 | 19 | 12 | 8.2 | 15.6 | 0.041 |
| GK12DO | 12 | 3 | 44 | 10 | 8 | 34 | 18 | 1.5 | 27 | 44 | 18 | 15 | 22 | 11 | 10.8 | 21.6 | 0.066 |
| GK15DO | 15 | 4 | 51 | 12 | 10 | 40 | 20 | 2 | 31 | 51 | 22 | 18.4 | 26 | 8 | 17.0 | 32.0 | 0.120 |
| GK17DO | 17 | 4 | 58 | 14 | 11 | 46 | 23 | 2 | 35 | 58 | 25 | 20.7 | 30 | 10 | 21.2 | 40.0 | 0.190 |
| GK20DO | 20 | 4 | 64.5 | 16 | 13 | 53 | 27.5 | 2 | 38 | 64.5 | 29 | 24.2 | 35 | 9 | 30.0 | 54.0 | 0.230 |
| GK25DO | 25 | 4 | 77 | 20 | 17 | 64 | 33 | 3 | 45 | 77 | 35.5 | 29.3 | 42 | 7 | 48.0 | 72.0 | 0.430 |
| GK30DO | 30 | 4 | 87.5 | 22 | 19 | 73 | 37.5 | 3 | 51 | 87.5 | 40.7 | 34.2 | 47 | 6 | 62.0 | 95.0 | 0.640 |
| GK35DO | 35 | 4 | 102 | 25 | 21 | 82 | 43 | 3 | 61 | 102 | 47 | 39.8 | 55 | 6 | 80.0 | 125.0 | 0.960 |
| GK40DO | 40 | 4 | 115 | 28 | 23 | 92 | 48 | 4 | 69 | 115 | 53 | 45 | 62 | 7 | 100.0 | 156.0 | 1.300 |
| GK45DO | 45 | 6 | 128 | 32 | 27 | 102 | 52 | 4 | 77 | 128 | 60 | 50.8 | 68 | 7 | 127.0 | 208.0 | 1.800 |
| GK50DO | 50 | 6 | 144 | 35 | 30 | 112 | 59 | 4 | 88 | 144 | 66 | 55.9 | 75 | 6 | 156.0 | 250.0 | 2.500 |
| GK60DO | 60 | 6 | 167.5 | 44 | 38 | 135 | 72.5 | 4 | 100 | 167.5 | 80 | 66.8 | 90 | 6 | 245.0 | 390.0 | 3.900 |
| GK70DO | 70 | 6 | 195 | 49 | 42 | 160 | 86 | 5 | 115 | 195 | 92 | 77.9 | 105 | 6 | 315.0 | 510.0 | 6.600 |
| GK80DO | 80 | 6 | 231 | 55 | 47 | 180 | 98 | 5 | 141 | 231 | 105 | 89.4 | 120 | 6 | 400.0 | 620.0 | 8.700 |
-Rod end housing with right or left-hand female thread.
-It is made up of a radial spherical plain bearing GE..ES or GE..ES 2RS and rod end housing.
-Rod end housing with a lubricating hole or grease nipple.
