Ball Joint
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
|

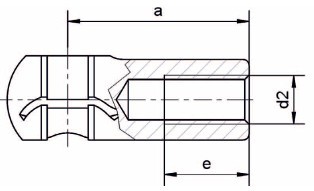

| Part No. | Ball Dia. | length to the center of the ball (a) | Thread | Depth of Thread e | Radial Trigger Force | Axial Trigger Force |
| FG1001 | 10 | 18 | M6 | ≥8 | ≥1200 | ≥3500 |
| FG1002 | 10 | 18 | M8 | ≥8.5 | ≥1200 | ≥3500 |
| FG1003 | 10 | 19 | M6 | ≥8.5 | ≥1200 | ≥3500 |
| FG1004 | 10 | 25 | M6 | 11.5 | ≥1200 | ≥3500 |
| FG1301 | 13 | 30 | M8 | 14 | ||
| FG1302 | 13 | 25 | M8 | 9 |
Material
Housing: Carbon steel.
Clip: Spring steel
Surface Treatment: Phosphatized and oiled
Optional: Galvanized,passivated in white-blue or black.
|
|
| Part No. | Ball Dia. | length to the center of the ball (a) | Thread | Depth of Thread e | Radial Trigger Force | Axial Trigger Force |
| FG1001 | 10 | 18 | M6 | ≥8 | ≥1200 | ≥3500 |
| FG1002 | 10 | 18 | M8 | ≥8.5 | ≥1200 | ≥3500 |
| FG1003 | 10 | 19 | M6 | ≥8.5 | ≥1200 | ≥3500 |
| FG1004 | 10 | 25 | M6 | 11.5 | ≥1200 | ≥3500 |
| FG1301 | 13 | 30 | M8 | 14 | ||
| FG1302 | 13 | 25 | M8 | 9 |
Material
Housing: Carbon steel.
Clip: Spring steel
Surface Treatment: Phosphatized and oiled
Optional: Galvanized,passivated in white-blue or black.
