Hydraulic rod ends
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
|
| Part No. | Dimensions mm | Load ratings kN | Weight | ||||||||||
| kg | |||||||||||||

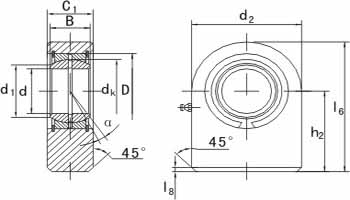

| d | B | C1 | d2 | L6 | L8 | h2 | dk | d1 | D | dyn C | stat C0 | ||
| GF20DO | 20 | 16 | 19 | 50 | 63 | 2 | 38 | 29 | 24.2 | 35 | 30 | 67 | 0.35 |
| GF25DO | 25 | 20 | 23 | 55 | 72.5 | 2 | 45 | 35.5 | 29.3 | 42 | 48 | 69.5 | 0.53 |
| GF30DO | 30 | 22 | 28 | 65 | 83.5 | 2 | 51 | 40.7 | 34.2 | 47 | 62 | 118 | 0.87 |
| GF35DO | 35 | 25 | 30 | 83 | 102.5 | 2 | 61 | 47 | 39.8 | 55 | 80 | 196 | 1.5 |
| GF40DO | 40 | 28 | 35 | 100 | 119 | 3 | 69 | 53 | 45 | 62 | 100 | 300 | 2.4 |
| GF45DO | 45 | 32 | 40 | 110 | 132 | 3 | 77 | 60 | 50.8 | 68 | 127 | 380 | 3.4 |
| GF50DO | 50 | 35 | 40 | 123 | 149.5 | 3 | 88 | 66 | 55.9 | 75 | 156 | 440 | 4.4 |
| GF60DO | 60 | 44 | 50 | 140 | 170 | 4 | 100 | 80 | 66.8 | 90 | 245 | 570 | 7.1 |
| GF70DO | 70 | 49 | 55 | 164 | 197 | 4 | 115 | 92 | 77.9 | 105 | 315 | 695 | 10.5 |
| GF80DO | 80 | 55 | 60 | 180 | 231 | 4 | 141 | 105 | 89.4 | 120 | 400 | 780 | 15 |
| GF90DO | 90 | 60 | 65 | 226 | 263 | 4 | 150 | 115 | 98.1 | 130 | 490 | 1340 | 23.5 |
| GF100DO | 100 | 70 | 70 | 250 | 295 | 4 | 170 | 130 | 109.5 | 150 | 610 | 1500 | 31.5 |
| GF110DO | 110 | 70 | 80 | 295 | 332.5 | 4 | 185 | 140 | 121.2 | 160 | 655 | 2160 | 48.5 |
| GF120DO | 120 | 85 | 90 | 360 | 390 | 4 | 210 | 160 | 135.5 | 180 | 950 | 3250 | 79 |

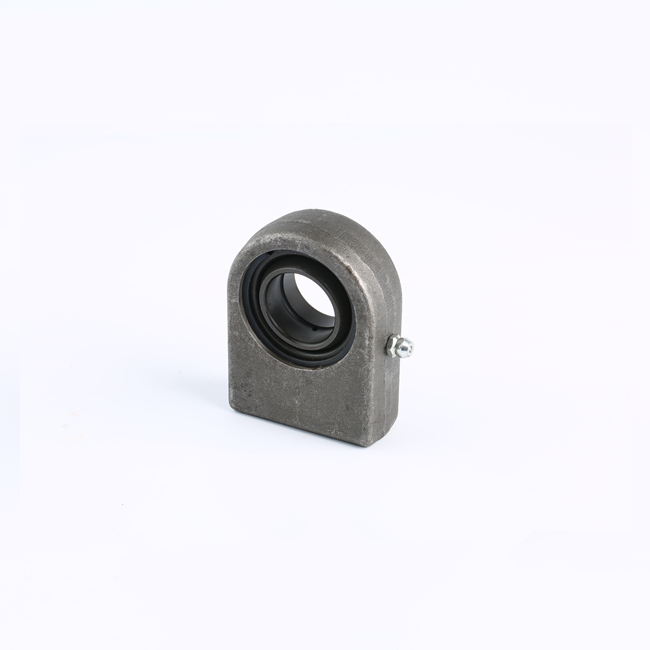

-Rod end housing with right or left-hand female thread.
-It is made up of a radial spherical plain bearing GE..ES or GE..ES 2RS and rod end housing.
-Rod end housing with a lubricating hole or grease nipple.
-Sealed design also available,e.g.GF 70 DO 2RS.
|
|
