Spherical Plain Bearings
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|

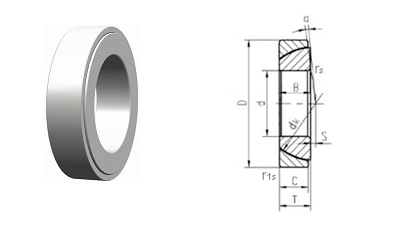

| Bearing No. | Dimensions mm | Load Ratings kN | Weight | |||||||||
| d | D | B | C | T | dk | S | rs,r1s | α | Dyn | Stat | kg | |
| min | ≈ | C | Co | |||||||||
| GAC25T | 25 | 47 | 15 | 14 | 15 | 42 | 0.6 | 1 | 2.5 | 75 | 149 | 0.148 |
| GAC28T | 28 | 52 | 16 | 15 | 16 | 47 | 1 | 1 | 2 | 90 | 179 | 0.186 |
| GAC30T | 30 | 55 | 17 | 15 | 17 | 49.5 | 1.3 | 1 | 4.5 | 95 | 188 | 0.208 |
| GAC32T | 32 | 58 | 17 | 16 | 17 | 52 | 2 | 1 | 2 | 106 | 211 | 0.241 |
| GAC35T | 35 | 62 | 18 | 16 | 18 | 55.5 | 2.1 | 1 | 4 | 117 | 234 | 0.268 |
| GAC40T | 10 | 68 | 19 | 17 | 19 | 62 | 2.8 | 1 | 3.5 | 139 | 277 | 0.327 |
| GAC45T | 45 | 75 | 20 | 18 | 20 | 68.5 | 3.5 | 1 | 3 | 162 | 324 | 0.416 |
| GAC50T | 50 | 80 | 20 | 19 | 20 | 74 | 4.3 | 1 | 1.5 | 185 | 370 | 0.455 |
| GAC55T | 55 | 90 | 23 | 20 | 23 | 82 | 5 | 1.1 | 4 | 216 | 432 | 0.645 |
| GAC60T | 60 | 95 | 23 | 21 | 23 | 88.5 | 5.7 | 1.1 | 2.5 | 245 | 489 | 0.714 |
| GAC65T | 65 | 100 | 23 | 22 | 23 | 93.5 | 6.5 | 1.1 | 1 | 271 | 542 | 0.759 |
| GAC70T | 70 | 110 | 25 | 23 | 25 | 102 | 7.2 | 1.1 | 2 | 309 | 618 | 1.040 |
| GAC75T | 75 | 115 | 25 | 24 | 25 | 107 | 7.9 | 1.1 | 1 | 339 | 676 | 1.120 |
| GAC80T | 80 | 125 | 29 | 25.5 | 29 | 115 | 8.6 | 1.1 | 3.5 | 387 | 772 | 1.540 |
| GAC85T | 85 | 130 | 29 | 26.5 | 29 | 122 | 9.4 | 1.1 | 2 | 426 | 851 | 1.610 |
| GAC90T | 90 | 140 | 32 | 28 | 32 | 129 | 10.1 | 1.5 | 3.5 | 474 | 948 | 2.090 |
| GAC95T | 95 | 145 | 32 | 29.5 | 32 | 135 | 10.8 | 1.5 | 2 | 525 | 1049 | 2.220 |
| GAC100T | 100 | 150 | 32 | 31 | 32 | 141 | 11.6 | 1.5 | 0.5 | 577 | 1151 | 2.340 |
| GAC105T | 105 | 160 | 35 | 32.5 | 35 | 148 | 12.3 | 2 | 2 | 634 | 1267 | 2.930 |
| GAC110T | 110 | 170 | 38 | 34 | 38 | 155 | 13 | 2 | 3 | 695 | 1380 | 3.680 |
| GAC120T | 120 | 180 | 38 | 37 | 38 | 168 | 14.5 | 2 | 0.5 | 820 | 1630 | 3.970 |
| GAC130T | 130 | 200 | 45 | 43 | 45 | 188 | 18 | 2.5 | 1 | 1060 | 2130 | 5.920 |
| GAC140T | 140 | 210 | 45 | 43 | 45 | 198 | 19 | 2.5 | 1 | 1120 | 2240 | 6.330 |
| GAC150T | 150 | 225 | 48 | 46 | 48 | 211 | 20 | 3 | 1 | 1280 | 2550 | 8.010 |
| GAC160T | 160 | 240 | 51 | 49 | 51 | 225 | 20 | 3 | 1 | 1445 | 2900 | 9.420 |
| GAC170T | 170 | 260 | 57 | 55 | 57 | 246 | 21 | 3 | 1 | 1780 | 3560 | 12.300 |
| GAC180T | 180 | 280 | 64 | 61 | 64 | 260 | 21 | 3 | 1 | 2090 | 4170 | 17.400 |
| GAC190T | 190 | 290 | 64 | 62 | 64 | 275 | 26 | 3 | 0.5 | 2250 | 4490 | 18.200 |
| GAC200T | 200 | 310 | 70 | 66 | 70 | 290 | 26 | 3 | 1.5 | 2520 | 5040 | 22.500 |
-Outer rings of carbon chromium steel,hardened,with sliding surface of PTFE fabric;
-Inner ring of carbon chromium steel,hardened,sliding surface hard chromium plated.
|
| Bearing No. | Dimensions mm | Load Ratings kN | Weight | |||||||||
| d | D | B | C | T | dk | S | rs,r1s | α | Dyn | Stat | kg | |
| min | ≈ | C | Co | |||||||||
| GAC25T | 25 | 47 | 15 | 14 | 15 | 42 | 0.6 | 1 | 2.5 | 75 | 149 | 0.148 |
| GAC28T | 28 | 52 | 16 | 15 | 16 | 47 | 1 | 1 | 2 | 90 | 179 | 0.186 |
| GAC30T | 30 | 55 | 17 | 15 | 17 | 49.5 | 1.3 | 1 | 4.5 | 95 | 188 | 0.208 |
| GAC32T | 32 | 58 | 17 | 16 | 17 | 52 | 2 | 1 | 2 | 106 | 211 | 0.241 |
| GAC35T | 35 | 62 | 18 | 16 | 18 | 55.5 | 2.1 | 1 | 4 | 117 | 234 | 0.268 |
| GAC40T | 10 | 68 | 19 | 17 | 19 | 62 | 2.8 | 1 | 3.5 | 139 | 277 | 0.327 |
| GAC45T | 45 | 75 | 20 | 18 | 20 | 68.5 | 3.5 | 1 | 3 | 162 | 324 | 0.416 |
| GAC50T | 50 | 80 | 20 | 19 | 20 | 74 | 4.3 | 1 | 1.5 | 185 | 370 | 0.455 |
| GAC55T | 55 | 90 | 23 | 20 | 23 | 82 | 5 | 1.1 | 4 | 216 | 432 | 0.645 |
| GAC60T | 60 | 95 | 23 | 21 | 23 | 88.5 | 5.7 | 1.1 | 2.5 | 245 | 489 | 0.714 |
| GAC65T | 65 | 100 | 23 | 22 | 23 | 93.5 | 6.5 | 1.1 | 1 | 271 | 542 | 0.759 |
| GAC70T | 70 | 110 | 25 | 23 | 25 | 102 | 7.2 | 1.1 | 2 | 309 | 618 | 1.040 |
| GAC75T | 75 | 115 | 25 | 24 | 25 | 107 | 7.9 | 1.1 | 1 | 339 | 676 | 1.120 |
| GAC80T | 80 | 125 | 29 | 25.5 | 29 | 115 | 8.6 | 1.1 | 3.5 | 387 | 772 | 1.540 |
| GAC85T | 85 | 130 | 29 | 26.5 | 29 | 122 | 9.4 | 1.1 | 2 | 426 | 851 | 1.610 |
| GAC90T | 90 | 140 | 32 | 28 | 32 | 129 | 10.1 | 1.5 | 3.5 | 474 | 948 | 2.090 |
| GAC95T | 95 | 145 | 32 | 29.5 | 32 | 135 | 10.8 | 1.5 | 2 | 525 | 1049 | 2.220 |
| GAC100T | 100 | 150 | 32 | 31 | 32 | 141 | 11.6 | 1.5 | 0.5 | 577 | 1151 | 2.340 |
| GAC105T | 105 | 160 | 35 | 32.5 | 35 | 148 | 12.3 | 2 | 2 | 634 | 1267 | 2.930 |
| GAC110T | 110 | 170 | 38 | 34 | 38 | 155 | 13 | 2 | 3 | 695 | 1380 | 3.680 |
| GAC120T | 120 | 180 | 38 | 37 | 38 | 168 | 14.5 | 2 | 0.5 | 820 | 1630 | 3.970 |
| GAC130T | 130 | 200 | 45 | 43 | 45 | 188 | 18 | 2.5 | 1 | 1060 | 2130 | 5.920 |
| GAC140T | 140 | 210 | 45 | 43 | 45 | 198 | 19 | 2.5 | 1 | 1120 | 2240 | 6.330 |
| GAC150T | 150 | 225 | 48 | 46 | 48 | 211 | 20 | 3 | 1 | 1280 | 2550 | 8.010 |
| GAC160T | 160 | 240 | 51 | 49 | 51 | 225 | 20 | 3 | 1 | 1445 | 2900 | 9.420 |
| GAC170T | 170 | 260 | 57 | 55 | 57 | 246 | 21 | 3 | 1 | 1780 | 3560 | 12.300 |
| GAC180T | 180 | 280 | 64 | 61 | 64 | 260 | 21 | 3 | 1 | 2090 | 4170 | 17.400 |
| GAC190T | 190 | 290 | 64 | 62 | 64 | 275 | 26 | 3 | 0.5 | 2250 | 4490 | 18.200 |
| GAC200T | 200 | 310 | 70 | 66 | 70 | 290 | 26 | 3 | 1.5 | 2520 | 5040 | 22.500 |
-Outer rings of carbon chromium steel,hardened,with sliding surface of PTFE fabric;
-Inner ring of carbon chromium steel,hardened,sliding surface hard chromium plated.
