Metric Rod Ends
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
|
| Part No. | Dimensions mm | Load Ratings kN | Weight kg | ||||||||||||||
| d | d3 | B | C1 | L3 | W | d2 | h1 | L4 | L5 | d4 | d5 | dk | a | dyn | stat | ||
| 6H | min | ≈ | C | C0 | |||||||||||||
| SI6E* | 6 | M6x1.0 | 6 | 4.4 | 11 | 11 | 21 | 30 | 41 | 5 | 10 | 13 | 10 | 13 | 3.4 | 8.15 | 0.021 |
| SI8E* | 8 | M8x1.25 | 8 | 6 | 15 | 14 | 24 | 36 | 48 | 5 | 12.5 | 16 | 13 | 15 | 5.5 | 12.9 | 0.039 |
| SI10E* | 10 | M10x1.5 | 9 | 7 | 20 | 17 | 29 | 43 | 58 | 6.5 | 15 | 19 | 16 | 12 | 8.15 | 17.6 | 0.061 |
| SI12E* | 12 | M12x1.75 | 10 | 8 | 23 | 19 | 34 | 50 | 67 | 6.5 | 17.5 | 22 | 18 | 11 | 10.8 | 24.5 | 0.096 |
| SI15ES | 15 | M14x2.0 | 12 | 10 | 30 | 22 | 40 | 61 | 81 | 8 | 21 | 26 | 22 | 8 | 17 | 36 | 0.18 |
| SI17ES | 17 | M16x2.0 | 14 | 11 | 34 | 27 | 46 | 67 | 90 | 10 | 24 | 30 | 25 | 10 | 21.2 | 45 | 0.22 |
| SI20ES | 20 | M20x1.5 | 16 | 13 | 40 | 32 | 53 | 77 | 104 | 10 | 27.5 | 35 | 29 | 9 | 30 | 60 | 0.35 |
| SI25ES | 25 | M24x2.0 | 20 | 17 | 48 | 36 | 64 | 94 | 126 | 12 | 33.5 | 42 | 35.5 | 7 | 48 | 83 | 0.64 |
| SI30ES | 30 | M30x2.0 | 22 | 19 | 56 | 41 | 73 | 110 | 147 | 15 | 40 | 50 | 40.7 | 6 | 62 | 110 | 0.93 |
| SI35ES | 35 | M36x3.0 | 25 | 21 | 60 | 50 | 82 | 125 | 166 | 15 | 47 | 58 | 47 | 6 | 80 | 146 | 1.3 |
| SI40ES | 40 | M39x3.0 | 28 | 23 | 65 | 55 | 92 | 142 | 188 | 18 | 52 | 65 | 53 | 7 | 100 | 180 | 2 |
| SI40-1ES | 40 | M42x3.0 | 28 | 23 | 65 | 55 | 92 | 142 | 188 | 18 | 52 | 65 | 53 | 7 | 100 | 180 | 1.96 |
| SI45ES | 45 | M42x3.0 | 32 | 27 | 65 | 60 | 102 | 145 | 196 | 20 | 58 | 70 | 60 | 7 | 127 | 240 | 2.5 |
| SI45-1ES | 45 | M45x3.0 | 32 | 27 | 65 | 60 | 102 | 145 | 196 | 20 | 58 | 70 | 60 | 7 | 127 | 240 | 2.44 |
| SI50ES | 50 | M45x3.0 | 35 | 30 | 68 | 65 | 112 | 160 | 216 | 20 | 62 | 75 | 66 | 6 | 156 | 290 | 3.5 |
| SI50-1ES | 50 | M52x3.0 | 35 | 30 | 68 | 65 | 112 | 160 | 216 | 20 | 62 | 75 | 66 | 6 | 156 | 290 | 3.4 |
| SI60ES | 60 | M52x3.0 | 44 | 38 | 70 | 75 | 135 | 175 | 243 | 20 | 70 | 88 | 80 | 6 | 245 | 450 | 5.5 |
| SI60-1ES | 60 | M60x4.0 | 44 | 38 | 70 | 75 | 135 | 175 | 243 | 20 | 70 | 88 | 80 | 6 | 245 | 450 | 5.38 |
| SI70ES | 70 | M56x4.0 | 49 | 42 | 80 | 85 | 160 | 200 | 280 | 20 | 80 | 98 | 92 | 6 | 315 | 610 | 8.6 |
| SI70-1ES | 70 | M72x4.0 | 49 | 42 | 80 | 85 | 160 | 200 | 280 | 20 | 80 | 98 | 92 | 6 | 315 | 610 | 8.42 |
| SI80ES | 80 | M64x4.0 | 55 | 47 | 85 | 100 | 180 | 230 | 320 | 25 | 95 | 110 | 105 | 6 | 400 | 750 | 12 |
| SI80-1ES | 80 | M80x4.0 | 55 | 47 | 85 | 100 | 180 | 230 | 320 | 25 | 95 | 110 | 105 | 6 | 400 | 750 | 11.8 |

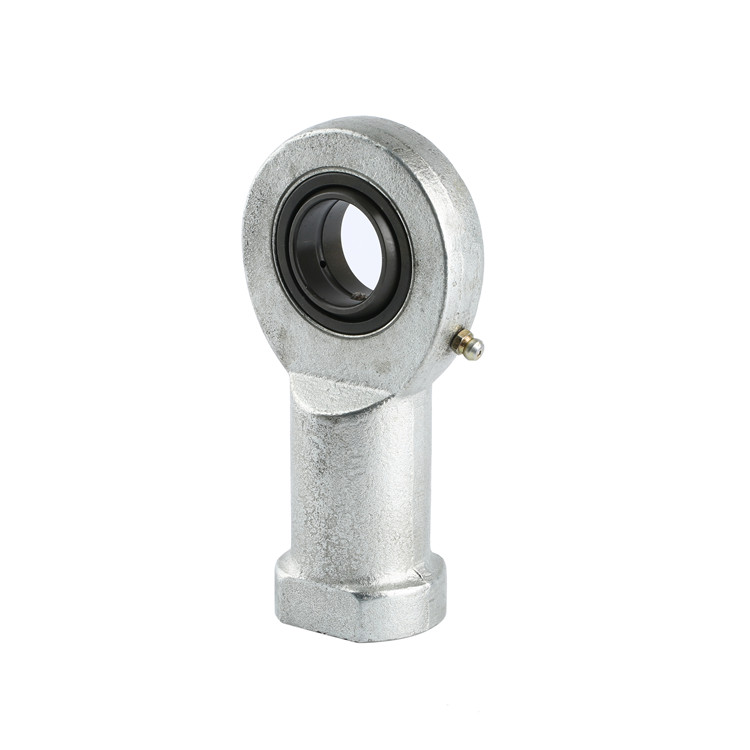

-Rod body with right or left-hand female thread.
-It is made up of a radial spherical plain braring GE..E(S)or GE..ES 2RS and rod body.
-Suface of rod body zinc plated,housing of SI..ES with a lubricating hole or grease nipple.
-For left-hand thread,please add surffix "L",e.g.SIL30 ES.
-For bearings d≥15,SI..ES 2RS also available,e.g.SI30ES 2RS.
-Lubricating hole or grease nipple isn't available for the sizes marked "*".
|
|
