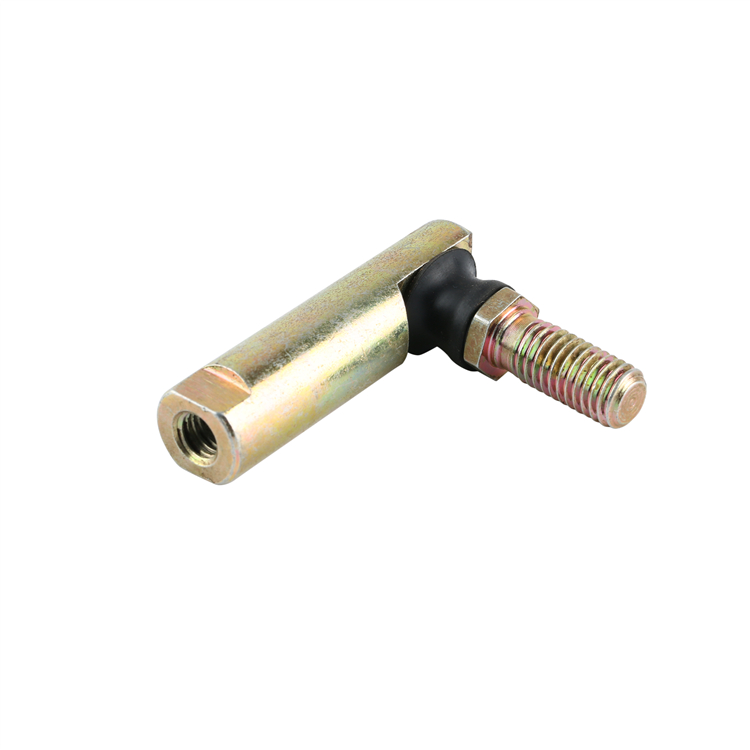

SAE Standard Ball Joints
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
|
| Part No. | Housing Thread | Stud Thread | F | G | J | L | M | N | P |
| ES187 | 10-32 | 10-32 | 0.44 | 0.438 | 0.313 | 0.375 | 1.063 | 0.875 | 0.438 |
| ES250 | 1/4-28 | 1/4-28 | 0.47 | 0.563 | 0.375 | 0.438 | 1.219 | 0.969 | 0.500 |
| ES312 | 5/16-24 | 5/16-24 | 0.53 | 0.688 | 0.438 | 0.500 | 1.406 | 1.125 | 0.563 |
| ES375 | 3/8-24 | 3/8-24 | 0.69 | 0.875 | 0.500 | 0.625 | 1.688 | 1.375 | 0.750 |
| ES438 | 7/16-20 | 7/16-20 | 0.88 | 1.125 | 0.625 | 0.750 | 2.375 | 1.938 | 1.000 |
| ES500 | 1/2-20 | 1/2-20 | 0.88 | 1.125 | 0.625 | 0.750 | 2.375 | 1.938 | 1.000 |
| ES625 | 5/18-18 | 5/18-18 | 1.00 | 1.125 | 0.750 | 0.875 | 2.578 | 2.063 | 1.000 |
Ball Stud: Low carbon steel,case hardened for extended wear life
Body: Low carbon steel
Zinc plated, yellow dichromate treated
Alternative: stainless steel
Unless otherwise specified,all dimensions are in inches
Special request upon drawing or samples
|
|
