Fittings for Clevis Joint
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
|

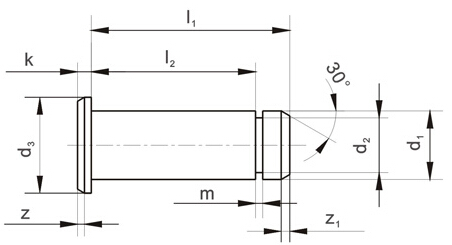

| Part No. | d1 | d3 | l1 | l2 | k | d2 | m | z | z1 | kg/100 pleces |
| h11 | h14 | js15 | 0.3 | js14 | -0.2 | 0.1 | ||||
| PA 4 | 4 | 6 | 10.5 | 8.5 | 1 | 3.2 | 0.64 | 0.5 | 0.5 | 0.12 |
| PA 5 | 5 | 8 | 13 | 10.5 | 1.5 | 4 | 0.74 | 0.5 | 0.5 | 0.24 |
| PA 6 | 6 | 9 | 15.5 | 12.5 | 1.5 | 5 | 0.74 | 0.5 | 0.75 | 0.42 |
| PA 8 | 8 | 12 | 20 | 16.5 | 2 | 6 | 0.94 | 1 | 1 | 0.9 |
| PA 10 | 10 | 14 | 25 | 20.5 | 2 | 8 | 1.05 | 1 | 1 | 1.7 |
| PA 12 | 12 | 17 | 30 | 24.5 | 3 | 9 | 1.15 | 1.5 | 1.25 | 2.95 |
| PA 14 | 14 | 20 | 33 | 27.5 | 2.5 | 10 | 1.25 | 1.5 | 1.25 | 4.1 |
| PA 16 | 16 | 20 | 38.5 | 32.5 | 3.5 | 12 | 1.35 | 1.5 | 1.5 | 6.2 |
| PA 18 | 18 | 25 | 42 | 36.5 | 3.5 | 13 | 1.35 | 2 | 1.5 | 8.95 |
| PA 20 | 20 | 28 | 46 | 40.5 | 4 | 17.5 | 1.8 | 2 | 1.5 | 12.1 |
| PA 25 | 25 | 34 | 57 | 50.5 | 5.5 | 18 | 1.8 | 2 | 1.5 | 23.1 |
Material:
Low carbon steel 1020,
Alternative,stainless steel
Surface protection：
phosphatized,oiled,zinc plate, passivated in white-blue or yellow.
|
|
| Part No. | d1 | d3 | l1 | l2 | k | d2 | m | z | z1 | kg/100 pleces |
| h11 | h14 | js15 | 0.3 | js14 | -0.2 | 0.1 | ||||
| PA 4 | 4 | 6 | 10.5 | 8.5 | 1 | 3.2 | 0.64 | 0.5 | 0.5 | 0.12 |
| PA 5 | 5 | 8 | 13 | 10.5 | 1.5 | 4 | 0.74 | 0.5 | 0.5 | 0.24 |
| PA 6 | 6 | 9 | 15.5 | 12.5 | 1.5 | 5 | 0.74 | 0.5 | 0.75 | 0.42 |
| PA 8 | 8 | 12 | 20 | 16.5 | 2 | 6 | 0.94 | 1 | 1 | 0.9 |
| PA 10 | 10 | 14 | 25 | 20.5 | 2 | 8 | 1.05 | 1 | 1 | 1.7 |
| PA 12 | 12 | 17 | 30 | 24.5 | 3 | 9 | 1.15 | 1.5 | 1.25 | 2.95 |
| PA 14 | 14 | 20 | 33 | 27.5 | 2.5 | 10 | 1.25 | 1.5 | 1.25 | 4.1 |
| PA 16 | 16 | 20 | 38.5 | 32.5 | 3.5 | 12 | 1.35 | 1.5 | 1.5 | 6.2 |
| PA 18 | 18 | 25 | 42 | 36.5 | 3.5 | 13 | 1.35 | 2 | 1.5 | 8.95 |
| PA 20 | 20 | 28 | 46 | 40.5 | 4 | 17.5 | 1.8 | 2 | 1.5 | 12.1 |
| PA 25 | 25 | 34 | 57 | 50.5 | 5.5 | 18 | 1.8 | 2 | 1.5 | 23.1 |
Material:
Low carbon steel 1020,
Alternative,stainless steel
Surface protection：
phosphatized,oiled,zinc plate, passivated in white-blue or yellow.
