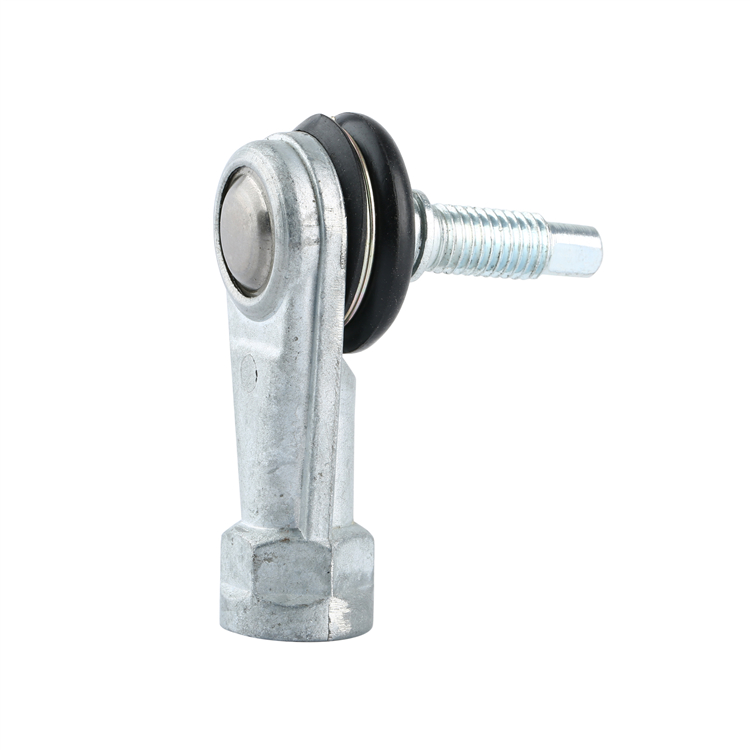

Zinc Alloy Ball Joints
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
|
| Part No. | Dimensions mm | Weight | |||||||
| M | M1 | L | L1 | I1 | I2 | S | Angle | Kg | |
| GSB1210 | M12x1.75 | M10x1.5 | 55 | 30 | 18.3 | 28 | 19 | 40° | 0.121 |
| GSB1211 | M12x1.75-LH | M10x1.5 | 55 | 30 | 18.3 | 28 | 19 | 40° | 0.121 |
| GSB1010 | M10x1.5 | M10x1.5 | 55 | 30 | 18.3 | 28 | 19 | 40° | 0.125 |
| GSB1011 | M10x1.5-LH | M10x1.5 | 55 | 30 | 18.3 | 28 | 19 | 40° | 0.125 |
| GSB1220 | M12x1.75 | M10x1.5 | 55 | 30 | 23.8 | 28 | 19 | 40° | 0.128 |
| GSB1221 | M12x1.75-LH | M10x1.5 | 55 | 30 | 23.8 | 28 | 19 | 40° | 0.128 |
Material
Housing: High strength zinc alloy
Ball: bearing steel GCr15,equivalent to AISI 52100,DIN100Cr6
Shank: carbon steel
Dust Cover: NBR rubber
Grease is seales in the boot,high wear resistance
Work Temperature,-40°C-120°C
|
|
| Part No. | Dimensions mm | Weight | |||||||
| M | M1 | L | L1 | I1 | I2 | S | Angle | Kg | |
| GSB1210 | M12x1.75 | M10x1.5 | 55 | 30 | 18.3 | 28 | 19 | 40° | 0.121 |
| GSB1211 | M12x1.75-LH | M10x1.5 | 55 | 30 | 18.3 | 28 | 19 | 40° | 0.121 |
| GSB1010 | M10x1.5 | M10x1.5 | 55 | 30 | 18.3 | 28 | 19 | 40° | 0.125 |
| GSB1011 | M10x1.5-LH | M10x1.5 | 55 | 30 | 18.3 | 28 | 19 | 40° | 0.125 |
| GSB1220 | M12x1.75 | M10x1.5 | 55 | 30 | 23.8 | 28 | 19 | 40° | 0.128 |
| GSB1221 | M12x1.75-LH | M10x1.5 | 55 | 30 | 23.8 | 28 | 19 | 40° | 0.128 |
Material
Housing: High strength zinc alloy
Ball: bearing steel GCr15,equivalent to AISI 52100,DIN100Cr6
Shank: carbon steel
Dust Cover: NBR rubber
Grease is seales in the boot,high wear resistance
Work Temperature,-40°C-120°C
