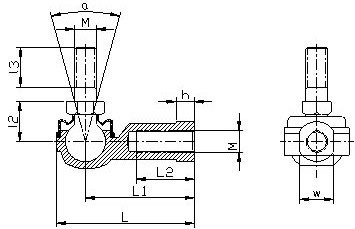

Zinc alloy ball joint-LHSA

Part No.	M	L	L1	L2	l2	l3	W	D1	h	a
LHSA5-RS	M5X0.75	38.5	30	16	12	10	10	10	5	17
LHSA6-RS	M6X1.0	38.5	30	16	12	10	10	10	5	17
LHSA8-RS	M8X1.25	48	36	19	14.5	12.5	13	13	5	18
LHSA10-RS	M10X1.25	57	43	23	16	17	15	15	6.5	19
LHSA12-RS	M12X1.75	67	50	27	20	20	17.5	17.5	6.5	20
LHSA14-RS	M14X2.0	76	57	30	22.5	22	20	20	8	20
LHSA16-RS	M16X1.5	84	64	32	36.5	23	22	22	8	20
LHSA18-RS	M18X1.5	93	71	34	41.5	25	25	25	10	20
LHSA20-RS	M20X1.5	99	77	35	41	25	28	28	10	20
LHSA22-RS	M22X1.5	109	84	41	42	26	30	30	12	20

Material

Housing: High strength zinc alloy

Ball: bearing steel GCr15,equivalent to steel SAE 52100

Shank: alloy steel 40Cr

Dust Cover: NBR rubber

Left hand thread,please add suffix'L',e.g.LHSA10L-RS

Grease is seales in the boot,high wear resistance

Work Temperature,-40℃-120℃
