Spherical Plain Bearings
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|

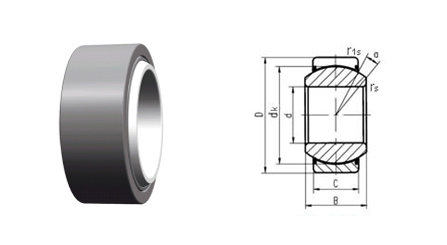

| Bearing No. | Dimensions mm | Load Ratings kN | Weight kg | ||||||||
| d | D | B | C | dk | rs | r1s | α | Dyn | Stat | ||
| min | min | ≈ | C | Co | |||||||
| GEG15ET-2RS | 15 | 30 | 16 | 10 | 25 | 0.3 | 0.3 | 16 | 30 | 60 | 0.049 |
| GEG17ET-2RS | 17 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 19 | 42 | 83 | 0.083 |
| GEG20ET-2RS | 20 | 42 | 25 | 16 | 35.5 | 0.3 | 0.6 | 17 | 68 | 137 | 0.153 |
| GEG25ET-2RS | 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 17 | 88 | 176 | 0.203 |
| GEG30ET-2RS | 30 | 55 | 32 | 20 | 47 | 0.6 | 1 | 17 | 112 | 224 | 0.304 |
| GEG35ET-2RS | 35 | 62 | 35 | 22 | 53 | 0.6 | 1 | 16 | 140 | 280 | 0.408 |
| GEG40ET-2RS | 40 | 68 | 40 | 25 | 60 | 0.6 | 1 | 17 | 180 | 360 | 0.542 |
| GEG45ET-2RS | 45 | 75 | 43 | 28 | 66 | 0.6 | 1 | 15 | 220 | 440 | 0.713 |
| GEG50ET-2RS | 50 | 90 | 56 | 36 | 80 | 0.6 | 1 | 17 | 345 | 695 | 1.14 |
| GEG60ET-2RS | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 17 | 440 | 880 | 2.05 |
| GEG70ET-2RS | 70 | 120 | 70 | 45 | 105 | 1 | 1 | 16 | 567 | 1140 | 3.01 |
| GEG80ET-2RS | 80 | 130 | 75 | 50 | 115 | 1 | 1 | 14 | 690 | 1370 | 3.64 |
| GEG90ET-2RS | 90 | 150 | 85 | 55 | 130 | 1 | 1 | 15 | 858 | 1730 | 5.22 |
| GEG100ET-2RS | 100 | 160 | 85 | 55 | 140 | 1 | 1 | 14 | 924 | 1860 | 6.05 |
| GEG110ET-2RS | 110 | 180 | 100 | 70 | 160 | 1 | 1 | 12 | 1340 | 2700 | 9.68 |
-As series GE...ET-2RS,but for bearing arrangement where a larger angle of tilt is needed,suitable for larger loads mechanism.
|
| Bearing No. | Dimensions mm | Load Ratings kN | Weight kg | ||||||||
| d | D | B | C | dk | rs | r1s | α | Dyn | Stat | ||
| min | min | ≈ | C | Co | |||||||
| GEG15ET-2RS | 15 | 30 | 16 | 10 | 25 | 0.3 | 0.3 | 16 | 30 | 60 | 0.049 |
| GEG17ET-2RS | 17 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 19 | 42 | 83 | 0.083 |
| GEG20ET-2RS | 20 | 42 | 25 | 16 | 35.5 | 0.3 | 0.6 | 17 | 68 | 137 | 0.153 |
| GEG25ET-2RS | 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 17 | 88 | 176 | 0.203 |
| GEG30ET-2RS | 30 | 55 | 32 | 20 | 47 | 0.6 | 1 | 17 | 112 | 224 | 0.304 |
| GEG35ET-2RS | 35 | 62 | 35 | 22 | 53 | 0.6 | 1 | 16 | 140 | 280 | 0.408 |
| GEG40ET-2RS | 40 | 68 | 40 | 25 | 60 | 0.6 | 1 | 17 | 180 | 360 | 0.542 |
| GEG45ET-2RS | 45 | 75 | 43 | 28 | 66 | 0.6 | 1 | 15 | 220 | 440 | 0.713 |
| GEG50ET-2RS | 50 | 90 | 56 | 36 | 80 | 0.6 | 1 | 17 | 345 | 695 | 1.14 |
| GEG60ET-2RS | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 17 | 440 | 880 | 2.05 |
| GEG70ET-2RS | 70 | 120 | 70 | 45 | 105 | 1 | 1 | 16 | 567 | 1140 | 3.01 |
| GEG80ET-2RS | 80 | 130 | 75 | 50 | 115 | 1 | 1 | 14 | 690 | 1370 | 3.64 |
| GEG90ET-2RS | 90 | 150 | 85 | 55 | 130 | 1 | 1 | 15 | 858 | 1730 | 5.22 |
| GEG100ET-2RS | 100 | 160 | 85 | 55 | 140 | 1 | 1 | 14 | 924 | 1860 | 6.05 |
| GEG110ET-2RS | 110 | 180 | 100 | 70 | 160 | 1 | 1 | 12 | 1340 | 2700 | 9.68 |
-As series GE...ET-2RS,but for bearing arrangement where a larger angle of tilt is needed,suitable for larger loads mechanism.
