Spherical Plain Bearings
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|

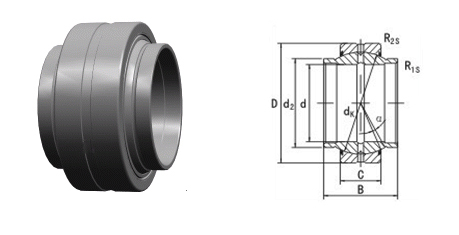

| Bearing No. | Dimensions mm | Load Ratings kN | Weight | |||||||||
| d | d2 | D | B | C | dk | R1s | R2s | α | Dyn | Stat | kg | |
| min | min | ≈ | C | Co | ||||||||
| GEEM17ES-2RS | 17 | 21 | 30 | 21 | 10 | 25 | 0.2 | 0.3 | 3 | 21.2 | 106 | 0.04 |
| GEEM20ES-2RS | 20 | 24 | 35 | 24 | 12 | 29 | 0.2 | 0.3 | 3 | 30 | 146 | 0.069 |
| GEEM25ES-2RS | 25 | 29 | 42 | 29 | 16 | 35.5 | 0.2 | 0.6 | 3 | 48 | 240 | 0.12 |
| GEEM30ES-RS | 30 | 34 | 47 | 30 | 18 | 40.7 | 0.2 | 0.6 | 3 | 62 | 310 | 0.15 |
| GEEM35ES-2RS | 35 | 40 | 55 | 35 | 20 | 47 | 0.3 | 1 | 3 | 80 | 400 | 0.26 |
| GEEM40ES-2RS | 40 | 45 | 62 | 38 | 22 | 53 | 0.3 | 1 | 3 | 100 | 500 | 0.32 |
| GEEM45ES-2RS | 45 | 52 | 68 | 40 | 25 | 60 | 0.3 | 1 | 3 | 127 | 640 | 0.43 |
| GEEM50ES-2RS | 50 | 57 | 75 | 43 | 28 | 66 | 0.3 | 1 | 3 | 156 | 780 | 0.55 |
| GEEM60ES-2RS | 60 | 68 | 90 | 54 | 36 | 80 | 0.3 | 1 | 3 | 245 | 1220 | 1.1 |
| GEEM70ES-2RS | 70 | 78 | 105 | 65 | 40 | 92 | 0.3 | 1 | 3 | 315 | 1560 | 1.6 |
| GEEM80ES-2RS | 80 | 90 | 120 | 74 | 45 | 105 | 0.3 | 1 | 3 | 400 | 2000 | 2.5 |
-Outer ring with lubrication groove and holes.
-Inner ring with cylindrical extensions at each side.
-With two seals at both sides.
|
| Bearing No. | Dimensions mm | Load Ratings kN | Weight | |||||||||
| d | d2 | D | B | C | dk | R1s | R2s | α | Dyn | Stat | kg | |
| min | min | ≈ | C | Co | ||||||||
| GEEM17ES-2RS | 17 | 21 | 30 | 21 | 10 | 25 | 0.2 | 0.3 | 3 | 21.2 | 106 | 0.04 |
| GEEM20ES-2RS | 20 | 24 | 35 | 24 | 12 | 29 | 0.2 | 0.3 | 3 | 30 | 146 | 0.069 |
| GEEM25ES-2RS | 25 | 29 | 42 | 29 | 16 | 35.5 | 0.2 | 0.6 | 3 | 48 | 240 | 0.12 |
| GEEM30ES-RS | 30 | 34 | 47 | 30 | 18 | 40.7 | 0.2 | 0.6 | 3 | 62 | 310 | 0.15 |
| GEEM35ES-2RS | 35 | 40 | 55 | 35 | 20 | 47 | 0.3 | 1 | 3 | 80 | 400 | 0.26 |
| GEEM40ES-2RS | 40 | 45 | 62 | 38 | 22 | 53 | 0.3 | 1 | 3 | 100 | 500 | 0.32 |
| GEEM45ES-2RS | 45 | 52 | 68 | 40 | 25 | 60 | 0.3 | 1 | 3 | 127 | 640 | 0.43 |
| GEEM50ES-2RS | 50 | 57 | 75 | 43 | 28 | 66 | 0.3 | 1 | 3 | 156 | 780 | 0.55 |
| GEEM60ES-2RS | 60 | 68 | 90 | 54 | 36 | 80 | 0.3 | 1 | 3 | 245 | 1220 | 1.1 |
| GEEM70ES-2RS | 70 | 78 | 105 | 65 | 40 | 92 | 0.3 | 1 | 3 | 315 | 1560 | 1.6 |
| GEEM80ES-2RS | 80 | 90 | 120 | 74 | 45 | 105 | 0.3 | 1 | 3 | 400 | 2000 | 2.5 |
-Outer ring with lubrication groove and holes.
-Inner ring with cylindrical extensions at each side.
-With two seals at both sides.
