Spherical Plain Bearings
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
| Bearing No. | Dimensions mm | Load ratings kN | Weight | ||||||||
| d | D | B | C | dk | rs | r1s | α° | Dyn | Stat | Kg | |
| min | min | ≈ | C | Co | |||||||
| GEGZ31ES | 1.25 | 2.4375 | 1.39 | 1.125 | 2.155 | 0.024 | 0.04 | 15 | 125 | 375 | 0.454 |
| GEGZ31ES-2RS | 1.25 | 2.4375 | 1.39 | 1.125 | 2.155 | 0.024 | 0.04 | 15 | 125 | 375 | 0.454 |
| GEGZ38ES | 1.5 | 2.8125 | 1.58 | 1.312 | 2.515 | 0.024 | 0.04 | 14 | 170 | 510 | 0.726 |
| GEGZ38ES-2RS | 1.5 | 2.8125 | 1.58 | 1.312 | 2.515 | 0.024 | 0.04 | 14 | 170 | 510 | 0.726 |
| GEGZ44ES | 1.75 | 3.1875 | 1.82 | 1.5 | 2.875 | 0.024 | 1 | 14 | 224 | 670 | 1.14 |
| GEGZ44ES-2RS | 1.75 | 3.1875 | 1.82 | 1.5 | 2.875 | 0.024 | 1 | 14 | 224 | 670 | 1.14 |
| GEGZ50ES | 2 | 3.5625 | 2.07 | 1.687 | 3.235 | 0.024 | 1 | 14 | 280 | 850 | 1.68 |
| GEGZ50ES-2RS | 2 | 3.5625 | 2.07 | 1.687 | 3.235 | 0.024 | 1 | 14 | 280 | 850 | 1.68 |
| GEGZ57ES | 2.25 | 3.9375 | 2.318 | 1.875 | 3.59 | 0.024 | 1 | 14 | 355 | 1060 | 2.01 |
| GEGZ57ES-2RS | 2.25 | 3.9375 | 2.318 | 1.875 | 3.59 | 0.024 | 1 | 14 | 355 | 1060 | 2.01 |
| GEGZ63ES | 2.5 | 4.375 | 2.545 | 2.062 | 3.95 | 0.04 | 1 | 14 | 415 | 1250 | 2.95 |
| GEGZ63ES-2RS | 2.5 | 4.375 | 2.545 | 2.062 | 3.95 | 0.04 | 1 | 14 | 415 | 1250 | 2.95 |
| GEGZ69ES | 2.75 | 4.75 | 2.79 | 2.25 | 4.312 | 0.04 | 0.04 | 14 | 500 | 1500 | 3.63 |
| GEGZ69ES-2RS | 2.75 | 4.75 | 2.79 | 2.25 | 4.312 | 0.04 | 0.04 | 14 | 500 | 1500 | 3.63 |
| GEGZ76ES | 3 | 5.125 | 3.022 | 2.437 | 4.675 | 0.04 | 0.04 | 14 | 585 | 1760 | 4.36 |
| GEGZ76ES-2RS | 3 | 5.125 | 3.022 | 2.437 | 4.675 | 0.04 | 0.04 | 14 | 585 | 1760 | 4.36 |
| GEGZ82ES | 3.25 | 5.5 | 3.265 | 2.625 | 5.04 | 0.04 | 0.04 | 14 | 680 | 2040 | 5.31 |
| GEGZ82ES-2RS | 3.25 | 5.5 | 3.265 | 2.625 | 5.04 | 0.04 | 0.04 | 14 | 680 | 2040 | 5.31 |
| GEGZ88ES | 3.5 | 5.875 | 3.56 | 2.812 | 5.39 | 0.04 | 0.04 | 14 | 780 | 2360 | 6.81 |
| GEGZ88ES-2RS | 3.5 | 5.875 | 3.56 | 2.812 | 5.39 | 0.04 | 0.04 | 14 | 780 | 2360 | 6.81 |
| GEGZ95ES | 3.75 | 6.25 | 3.738 | 3 | 5.75 | 0.04 | 0.04 | 14 | 900 | 2650 | 8.85 |
| GEGZ95ES-2RS | 3.75 | 6.25 | 3.738 | 3 | 5.75 | 0.04 | 0.04 | 10 | 900 | 2650 | 8.85 |
| GEGZ101ES | 4 | 7 | 4.225 | 3.375 | 6.475 | 0.04 | 0.04 | 10 | 1120 | 3400 | 10.2 |
| GEGZ101ES-2RS | 4 | 7 | 4.225 | 3.375 | 6.475 | 0.04 | 0.04 | 10 | 1120 | 3400 | 10.2 |
| GEGZ114ES | 4.5 | 7.75 | 4.69 | 3.75 | 7.19 | 0.04 | 0.04 | 10 | 1400 | 4150 | 13.6 |
| GEGZ114ES-2RS | 4.5 | 7.75 | 4.69 | 3.75 | 7.19 | 0.04 | 0.04 | 10 | 1400 | 4150 | 13.6 |
| GEGZ139ES | 5.5 | 8.75 | 4.95 | 4.125 | 8.156 | 0.04 | 0.04 | 9 | 1730 | 5200 | 20.4 |
| GEGZ139ES-2RS | 5.5 | 8.75 | 4.95 | 4.125 | 8.156 | 0.04 | 0.04 | 9 | 1730 | 5200 | 20.4 |

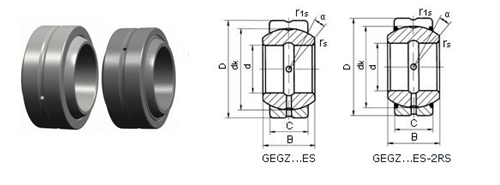

-GEGZ...ES:As series GEG..ES,but with inch dimensions.
-GEGZ...ES-2RS:As series GEG...ES-2RS,but with inch dimensions.
|
| Bearing No. | Dimensions mm | Load ratings kN | Weight | ||||||||
| d | D | B | C | dk | rs | r1s | α° | Dyn | Stat | Kg | |
| min | min | ≈ | C | Co | |||||||
| GEGZ31ES | 1.25 | 2.4375 | 1.39 | 1.125 | 2.155 | 0.024 | 0.04 | 15 | 125 | 375 | 0.454 |
| GEGZ31ES-2RS | 1.25 | 2.4375 | 1.39 | 1.125 | 2.155 | 0.024 | 0.04 | 15 | 125 | 375 | 0.454 |
| GEGZ38ES | 1.5 | 2.8125 | 1.58 | 1.312 | 2.515 | 0.024 | 0.04 | 14 | 170 | 510 | 0.726 |
| GEGZ38ES-2RS | 1.5 | 2.8125 | 1.58 | 1.312 | 2.515 | 0.024 | 0.04 | 14 | 170 | 510 | 0.726 |
| GEGZ44ES | 1.75 | 3.1875 | 1.82 | 1.5 | 2.875 | 0.024 | 1 | 14 | 224 | 670 | 1.14 |
| GEGZ44ES-2RS | 1.75 | 3.1875 | 1.82 | 1.5 | 2.875 | 0.024 | 1 | 14 | 224 | 670 | 1.14 |
| GEGZ50ES | 2 | 3.5625 | 2.07 | 1.687 | 3.235 | 0.024 | 1 | 14 | 280 | 850 | 1.68 |
| GEGZ50ES-2RS | 2 | 3.5625 | 2.07 | 1.687 | 3.235 | 0.024 | 1 | 14 | 280 | 850 | 1.68 |
| GEGZ57ES | 2.25 | 3.9375 | 2.318 | 1.875 | 3.59 | 0.024 | 1 | 14 | 355 | 1060 | 2.01 |
| GEGZ57ES-2RS | 2.25 | 3.9375 | 2.318 | 1.875 | 3.59 | 0.024 | 1 | 14 | 355 | 1060 | 2.01 |
| GEGZ63ES | 2.5 | 4.375 | 2.545 | 2.062 | 3.95 | 0.04 | 1 | 14 | 415 | 1250 | 2.95 |
| GEGZ63ES-2RS | 2.5 | 4.375 | 2.545 | 2.062 | 3.95 | 0.04 | 1 | 14 | 415 | 1250 | 2.95 |
| GEGZ69ES | 2.75 | 4.75 | 2.79 | 2.25 | 4.312 | 0.04 | 0.04 | 14 | 500 | 1500 | 3.63 |
| GEGZ69ES-2RS | 2.75 | 4.75 | 2.79 | 2.25 | 4.312 | 0.04 | 0.04 | 14 | 500 | 1500 | 3.63 |
| GEGZ76ES | 3 | 5.125 | 3.022 | 2.437 | 4.675 | 0.04 | 0.04 | 14 | 585 | 1760 | 4.36 |
| GEGZ76ES-2RS | 3 | 5.125 | 3.022 | 2.437 | 4.675 | 0.04 | 0.04 | 14 | 585 | 1760 | 4.36 |
| GEGZ82ES | 3.25 | 5.5 | 3.265 | 2.625 | 5.04 | 0.04 | 0.04 | 14 | 680 | 2040 | 5.31 |
| GEGZ82ES-2RS | 3.25 | 5.5 | 3.265 | 2.625 | 5.04 | 0.04 | 0.04 | 14 | 680 | 2040 | 5.31 |
| GEGZ88ES | 3.5 | 5.875 | 3.56 | 2.812 | 5.39 | 0.04 | 0.04 | 14 | 780 | 2360 | 6.81 |
| GEGZ88ES-2RS | 3.5 | 5.875 | 3.56 | 2.812 | 5.39 | 0.04 | 0.04 | 14 | 780 | 2360 | 6.81 |
| GEGZ95ES | 3.75 | 6.25 | 3.738 | 3 | 5.75 | 0.04 | 0.04 | 14 | 900 | 2650 | 8.85 |
| GEGZ95ES-2RS | 3.75 | 6.25 | 3.738 | 3 | 5.75 | 0.04 | 0.04 | 10 | 900 | 2650 | 8.85 |
| GEGZ101ES | 4 | 7 | 4.225 | 3.375 | 6.475 | 0.04 | 0.04 | 10 | 1120 | 3400 | 10.2 |
| GEGZ101ES-2RS | 4 | 7 | 4.225 | 3.375 | 6.475 | 0.04 | 0.04 | 10 | 1120 | 3400 | 10.2 |
| GEGZ114ES | 4.5 | 7.75 | 4.69 | 3.75 | 7.19 | 0.04 | 0.04 | 10 | 1400 | 4150 | 13.6 |
| GEGZ114ES-2RS | 4.5 | 7.75 | 4.69 | 3.75 | 7.19 | 0.04 | 0.04 | 10 | 1400 | 4150 | 13.6 |
| GEGZ139ES | 5.5 | 8.75 | 4.95 | 4.125 | 8.156 | 0.04 | 0.04 | 9 | 1730 | 5200 | 20.4 |
| GEGZ139ES-2RS | 5.5 | 8.75 | 4.95 | 4.125 | 8.156 | 0.04 | 0.04 | 9 | 1730 | 5200 | 20.4 |
-GEGZ...ES:As series GEG..ES,but with inch dimensions.
-GEGZ...ES-2RS:As series GEG...ES-2RS,but with inch dimensions.
