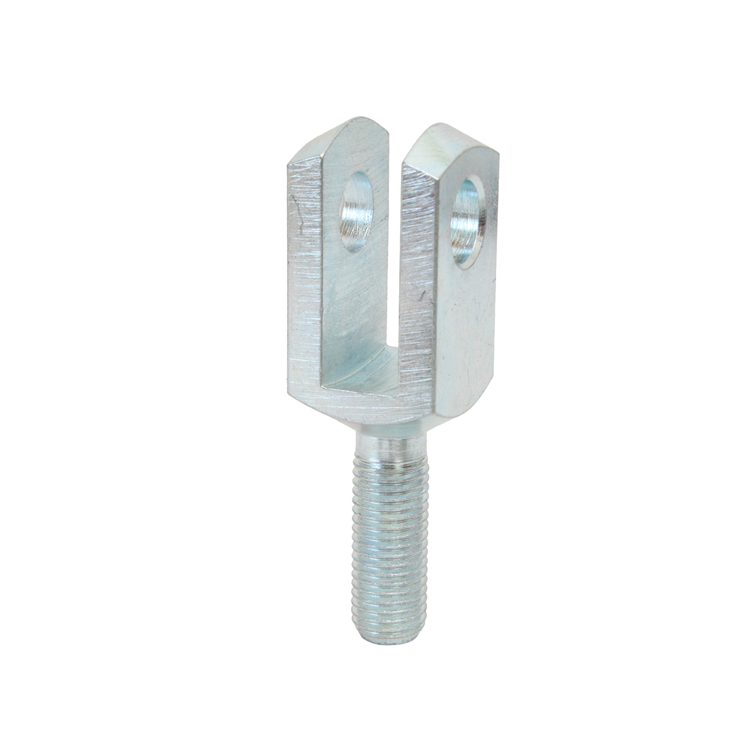

Clevis with Male Thread GM

  • DIN Standard Clevises and Joints
  • Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
  • Ningbo, China
  • Ningbo Lehonb Machinery Co.,Ltd
Quantity:

Clevis with male thread-GM - LEHONB_


Clevis with Male Thread GM

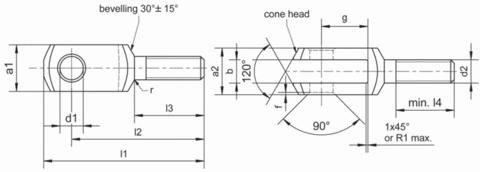

Part No. d1
g
a1 a2 b d2 f l1 l2 l3 l4 r Weight

H9 ±0.5 h11 +0.3
-0.16
=0.7
+0.15
Regular thread fine-pitch thread ±0.2 ±0.2 ±0.4 ±0.3

(kg)/piece
GM6x12  6 12 12 12 6 M6x1.0
0.5 44 37 20 15 0.8 0.015
GM8x16  8 16 16 16 8 M8x1.25
0.5 57 47 25 20 0.8 0.036
GM10x20  10 20 20 20 10 M10x1.5
0.5 69 57 30 25 0.8 0.068
GM12x24  12 24 24 24 12 M12x1.75
0.5 82 68 35 30 0.8 0.122
GM14x28  14 28 27 27 14 M14x2.0
1 94 78 40 35 1.2 0.171
GM16x32  16 32 32 32 16 M16x2.0
1 108 89 45 40 1.2 0.288
GM20x40  20 40 40 40 20 M20x2.5
1 134 109 55 50 1.5 0.550



Code for thread

Regular thread no code

Regular thread,left-handed LH

Fine-pitch thread FG

Fine-pitch thread,left-handed FGLH



Material

low carbon steel Q235A or higher level steel

Surface protection:

Blue zinc plated,yellow zinc plated,phosphatised oiled,chromeplated,or upon request.

Alternative:stainless steel AISI304,316,316L,etc
