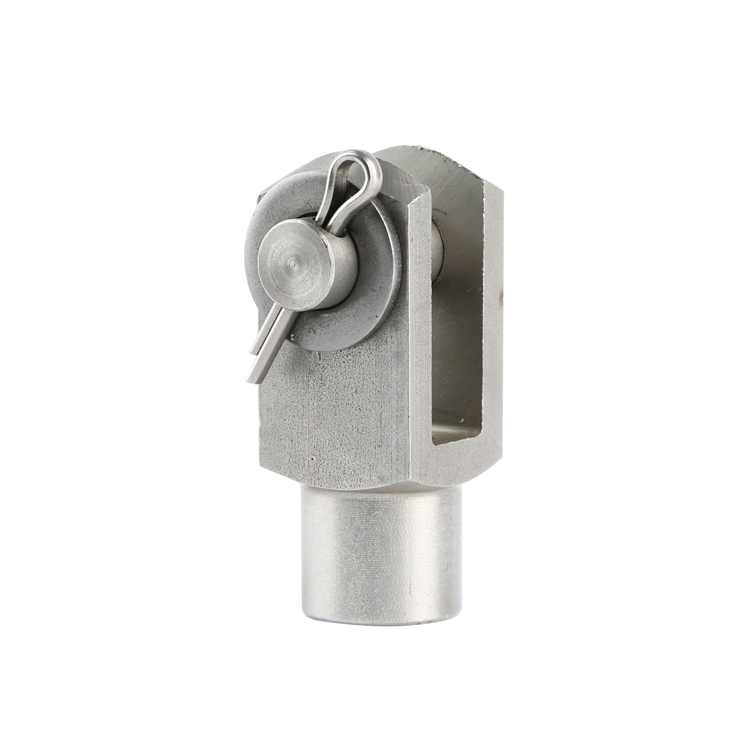

Clevis Joint DIN71751 - Type A

  • DIN Standard Clevises and Joints
  • Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
  • Ningbo, China
  • Ningbo Lehonb Machinery Co.,Ltd
Quantity:

Clevis Joint DIN71751 Type A - Lehonb




Part No. d1
g

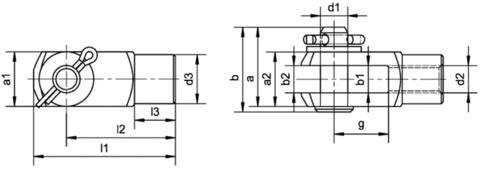

a a1 a2 b b1 b2 d2 d3 l1 l2 l3 Weight

h11 ±0.5
h11 +0.5
-0.2

B13

Regular thread fine-pitch thread
±0.5

±0.3 (kg)/piece
A4x8  4 8 12 8 8 13 4 4 B13 M4x0.7
8 21 16 ±0.3  6 0.007
A4x16  4 16 12 8 8 13 4 4 M4x0.7
8 29 24 6 0.009
A5x10  5 10 15 10 10 16.5 5 5 M5x0.8
9 26 20 7.5 0.012
A5x20  5 20 15 10 10 16.5 5 5 M5x0.8
9 36 30 7.5 0.016
A6x12  6 12 18 12 12 19.5 6 6 M6x1.0
10 31 24 9 0.021
A6x24  6 24 18 12 12 19.5 6 6 M6x1.0
10 43 36 ±0.4  9 0.027
A8x16  8 16 23 16 16 25 8 8 M8x1.25
14 42 32 12 0.049
A8x16FG  8 16 23 16 16 25 8 8 M8x1.0
14 42 32 12 0.049
A8x32  8 32 23 16 16 25 8 8
M8x1.25  14 58 48 12 0.066
A8x32FG  8 32 23 16 16 25 8 8 M8x1.0
14 58 48 12 0.066
A10x20  10 20 29 20 20 31 10 10 M10x1.5
18 52 40 15 0.098
A10x20FG  10 20 29 20 20 31 10 10
M10x1.25  18 52 40 15 0.098
A10x40  10 40 29 20 20 31 10 10 +0.70
+0.15
M10x1.5
18 72 60 15 0.140
A10x40FG  10 40 29 20 20 31 10 10
M10x1.25  18 72 60 15 0.140
A12x24  12 24 35 24 24 38 12 12 M12x1.75
20 62 48 18 0.164
A12x24FG  12 24 35 24 24 38 12 12
M12x1.25  20 62 48 18 0.164
A12x48  12 48 35 24 24 38 12 12 M12x1.75
20 86 72 18 0.218
A12x48FG  12 48 35 24 24 38 12 12
M12x1.25  20 86 72 18 0.218
A14x28  14 28 40 27 27 43 14 14 M14x2.0
24 72 56 22.5 0.243
A14x28FG  14 28 40 27 27 43 14 14
M14x1.5  24 72 56 22.5 0.243
A14x56  14 56 40 27 27 43 14 14 M14x2.0
24 101 85 22.5 0.323
A14x56FG  14 56 40 27 27 43 14 14
M14x1.5  24 101 85 22.5 0.323
A16x32  16 32 45 32 32 48.5 16 16 M16x2.0
26 83 64 ±0.4  24 0.368
A16x32FG  16 32 45 32 32 48.5 16 16
M16x1.5  26 83 64 24 0.368
A16x64  16 64 45 32 32 48.5 16 16 M16x2.0
26 115 96 24 0.497
A16x64FG  16 64 45 32 32 48.5 16 16
M16x1.5  26 115 96 24 0.497
A18x36  18 36 50 36 36 53.5 18 18 M18x2.5
30 94 72 27 0.516
A18x36FG  18 36 50 36 36 53.5 18 18
M18x1.5  30 94 72 27 0.516
A20x40  20 40 53 40 40 57 20 20 M20x2.5
34 105 80 30 0.713
A20x40FG  20 40 53 40 40 57 20 20
M20x1.5  34 105 80 30 0.713
A20x80  20 80 53 40 40 57 20 20 +0.70
+0.15
M20x2.5
34 145 120 30 0.963
A20x80FG  20 80 53 40 40 57 20 20
M20x1.5  34 145 120 30 0.963
A25x50  25 50 67 50 50 72.5 25 25 M24x3.0
42 132 100 36 1.411
A25x50FG  25 50 67 50 50 72.5 25 25
M24x2.0  42 132 100 36 1.411
A28x56  28 56 72 55 55 77.5 28 28 M27x3.0
48 148 112 40 1.915
A28x56FG  28 56 72 55 55 77.5 28 28
M27x2.0  48 148 112 40 1.915
A30x54FG  30 54 67 55 55 72.5 30 30
M27x2.0  48 148 110 40 1.836
A30x60  30 60 77 60 60 82.5 30 30 M30x3.5
52 160 120 42 2.465
A30x60FG  30 60 77 60 60 82.5 30 30
M30x2.0  52 160 120 ±0.4  42 2.465
A35x54FG  35 54 87 70 70 94 35 35
M36x2.0  60 188 144 54 3.620
A35x72  35 72 87 70 70 94 35 35 M36x4.0
60 188 144 54 3.632
A35x72FG  35 72 87 70 70 94 35 35
M36x2.0  60 188 144 54 3.632
A36x72  35 72 87 70 70 94 36 36 M36x4.0
60 188 144 54 3.632
A36x72FG  35 72 87 70 70 94 36 36
M36x2.0  60 188 144 54 4.632
A40x84 40 84 100 85 85 106 40 40 M42x4.5  M42x2.0  70 232 168 63.5 6.700
A40x84FG  40 84 100 85 85 106 40 40
M42x2.0  70 232 168 63.5 6.700
A42x84  42 84 100 85 85 107 42 42 M42x4.5
70 232 168 63.5 6.516
A42x84FG  42 84 100 85 85 107 42 42
M42x2.0  70 232 168 63.5 6.516
A50x96  50 96 115 96 96 122 50 50 M48x5.0
82 265 192 73 9.756
A50x96FG  50 96 115 96 96 122 50 50
M48x2.0  82 265 192 73 9.746



Code for thread

Regular thread

Regular thread,left-handed

Fine-pitch thread

Fine-pitch thread,left-handed



Material

Clevis: low carbon steel Q235A or higher level steel

bolt: Q235A, tensile strength approx. 550-700 N / mm²

split pin: low carbon steel

washer: 65Mn hardened and annealed to approx. 430-500 HV

Surface protection:

Blue zinc plated,yellow zinc plated,phosphatised oiled,chromeplated,or upon request.

Alternative: stainless steel AISI304,316,316L,etc
