DIN Standard Clevises and Joints
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
|

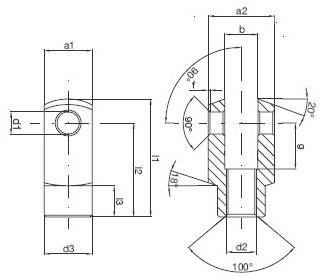

| Part No. | Cylinder | d1 | g | b2 | d2 | d3 | l1 | l2 | l3 | a1 | a2 | Max radial load. Co.(daN) | Weight |
| ø | H9 | ±0,5 | H11 | H11 | ±0,3 | ±0,5 | h13 | ±0,2 | h11 | h11 | ≈ (kg) | ||
| G8x16 CN | 32 | 8 | 16 | 11 | M10x1,5 | 22 | 45 | 36 | 14,0 | 22 | 22 | 3080 | 0,080 |
| G12x25 CN | 40-50 | 12 | 25 | 18 | M16x1,5 | 36 | 64 | 51 | 17,0 | 26 | 36 | 5040 | 0,210 |
| G16x33 CN | 63-80 | 16 | 33 | 22 | M20x1,5 | 45 | 80 | 63 | 18,5 | 34 | 45 | 8280 | 0,440 |
| G20x40 CN | 100-125 | 20 | 40 | 30 | M27x2,0 | 63 | 105 | 85 | 30,0 | 42 | 63 | 14520 | 0,910 |
| G25x40 CN | 160-200 | 25 | 40 | 40 | M36x2,0 | 80 | 140 | 115 | 45,0 | 50 | 80 | 20000 | 1,800 |
Material: automatic steel 11SMnPb30 (1.0718) or equivalent steel.
Surface protection: zinc plating,or oiled
For left-hand thread add "LH" (ex. G8x16 CN LH)
|
|
| Part No. | Cylinder | d1 | g | b2 | d2 | d3 | l1 | l2 | l3 | a1 | a2 | Max radial load. Co.(daN) | Weight |
| ø | H9 | ±0,5 | H11 | H11 | ±0,3 | ±0,5 | h13 | ±0,2 | h11 | h11 | ≈ (kg) | ||
| G8x16 CN | 32 | 8 | 16 | 11 | M10x1,5 | 22 | 45 | 36 | 14,0 | 22 | 22 | 3080 | 0,080 |
| G12x25 CN | 40-50 | 12 | 25 | 18 | M16x1,5 | 36 | 64 | 51 | 17,0 | 26 | 36 | 5040 | 0,210 |
| G16x33 CN | 63-80 | 16 | 33 | 22 | M20x1,5 | 45 | 80 | 63 | 18,5 | 34 | 45 | 8280 | 0,440 |
| G20x40 CN | 100-125 | 20 | 40 | 30 | M27x2,0 | 63 | 105 | 85 | 30,0 | 42 | 63 | 14520 | 0,910 |
| G25x40 CN | 160-200 | 25 | 40 | 40 | M36x2,0 | 80 | 140 | 115 | 45,0 | 50 | 80 | 20000 | 1,800 |
Material: automatic steel 11SMnPb30 (1.0718) or equivalent steel.
Surface protection: zinc plating,or oiled
For left-hand thread add "LH" (ex. G8x16 CN LH)
