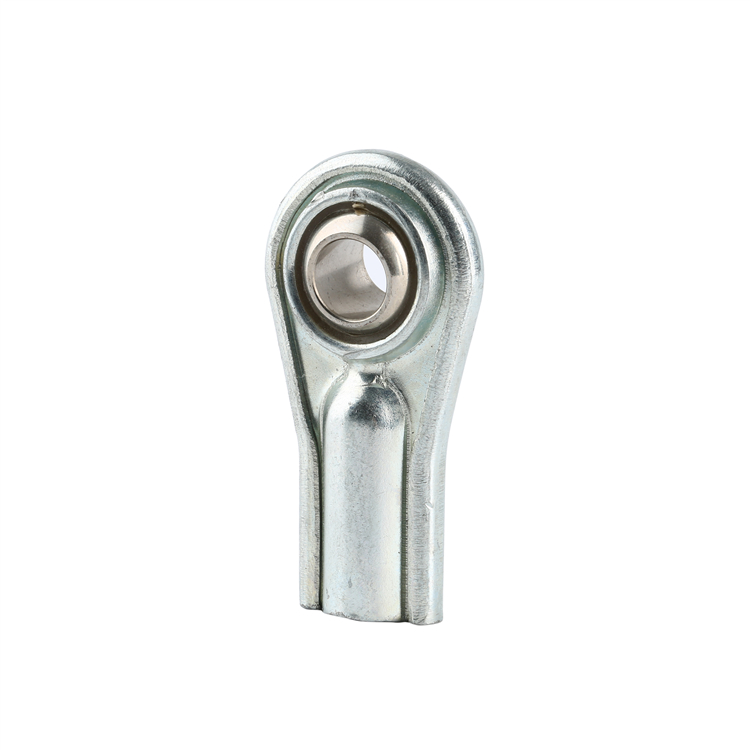

Inch Rod Ends
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
|
| Part No. | Thread | A Ball ID | D | E | F | G | H | J | M | N | O |
| RSH-3 | 10-32 | 0.19 | 0.437 | 0.437 | 0.312 | 1.062 | 0.5 | 0.75 | 0.25 | 0.312 | 0.45 |
| RSH-4 | 1/4-28 | 0.251 | 0.46 | 0.562 | 0.375 | 1.312 | 0.687 | 0.85 | 0.287 | 0.375 | 0.515 |
| RSH-5 | 5/16-24 | 0.313 | 0.531 | 0.687 | 0.437 | 1.375 | 0.687 | 1.015 | 0.305 | 0.437 | 0.59 |
| RSH-6 | 3/8-24 | 0.376 | 0.644 | 0.906 | 0.5 | 1.625 | 0.875 | 1.125 | 0.4 | 0.5 | 0.725 |
| RSH-6-L1 | 3/8-24 | 0.376 | 1.625 | 0.875 | 1.125 | 0.4 | 0.75 | 0.725 | |||
| RSH-6-L2 | 3/8-24 | 0.376 | 1.625 | 0.875 | 1.125 | 0.4 | 0.625 | 0.725 | |||
| RSH-8 | 1/2-20 | 0.501 | 0.875 | 1.125 | 0.625 | 2.125 | 1.125 | 1.47 | 0.5 | 0.625 | 1.01 |
-Ball
• 52100 Bearing Steel or low carbon steel
• Heat Treated
• Hard Chrome Plated
• Precision Ground
-Body
• Carbon Steel
• Protective Coated for Corrosion Resistance
-In inch dimension series.
-For left-hand thread, please add suffix "L", e.g. RSHL 6.
-Rod end with stud,please add suffix"s",e.g.RSH-6S
|
|
