Rod end,molded race,self-lubricating,SPF series

Type:
Inch Rod Ends
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Place of Origin:
Ningbo, China
Manufacturer:
Ningbo Lehonb Machinery Co.,Ltd

Rod End - SPF

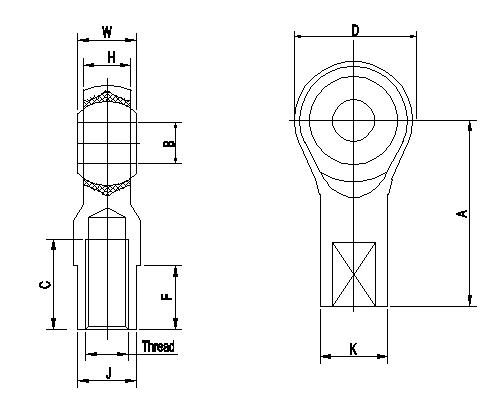

Part No.	Thread Size	B	D	A	C	Ball Dia.	H	W	K	J	F	Ultimate Radial Load Capacity
	UNF-2A											(Pounds)
SPF3	10-32	0.1900	0.625	1.062	0.562	0.438	0.250	0.312	0.406	0.312	0.406	1210
SPF4	1/4-28	0.2500	0.750	1.312	0.750	0.516	0.281	0.375	0.469	0.375	0.469	2470
SPF5	5/16-24	0.3125	0.875	1.375	0.750	0.625	0.344	0.437	0.500	0.437	0.500	2740
SPF6	3/8-24	0.3750	1.000	1.625	0.937	0.719	0.406	0.500	0.687	0.562	0.562	4100
SPF7	7/16-20	0.4375	1.125	1.812	1.031	0.812	0.437	0.562	0.750	0.625	0.625	5350
SPF8	1/2-20	0.5000	1.312	2.125	1.187	0.938	0.500	0.625	0.875	0.750	0.687	6430
SPF10	5/8-18	0.6250	1.500	2.500	1.500	1.125	0.562	0.750	1.000	0.875	0.875	8300
SPF12	3/4-16	0.7500	1.750	2.875	1.562	1.312	0.687	0.875	1.125	1.000	1.000	10900

Material

Body: carbon steel,zinc plated

Ball: bearing steel GCr15,hard chromeplated.

Race: fiber reinforced nylon.

Left hand thread are available in all sizes.

Left hand units are marked for easy user identification. (Add suffix "L" to part number. i.e. SPFL4)

Optional, a stud is mounted with ball.
