Spherical Plain Bearings
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
|
| Bearing No. | Dimensions mm | Load ratings kN | Weight | |||||||
| d | D | B | dk | R1s | R2s | a | dyn | stat | kg | |
| min | min | ≈ | C | C0 | ||||||
| GE6E | 6 | 14 | 6 | 10 | 0.3 | 0.3 | 13 | 3.4 | 17 | 0.004 |
| GE8E | 8 | 16 | 8 | 13 | 0.3 | 0.3 | 15 | 5.5 | 27.5 | 0.007 |
| GE10E | 10 | 19 | 9 | 16 | 0.3 | 0.3 | 12 | 8.15 | 40.5 | 0.011 |
| GE12E | 12 | 22 | 10 | 18 | 0.3 | 0.3 | 11 | 10.8 | 54 | 0.016 |
| GE15ES GE15ES2RS | 15 | 26 | 12 | 22 | 0.3 | 0.3 | 8 | 17 | 85 | 0.025 |
| GE16ES GE16ES2RS | 16 | 30 | 14 | 25 | 0.3 | 0.3 | 10 | 21.2 | 106 | 0.041 |
| GE17ES GE17ES2RS | 17 | 30 | 14 | 25 | 0.3 | 0.3 | 10 | 21.2 | 106 | 0.041 |
| GE20ES GE20ES2RS | 20 | 35 | 16 | 29 | 0.6 | 0.3 | 9 | 30 | 146 | 0.061 |
| GE25ES GE25ES2RS | 25 | 42 | 20 | 35.5 | 0.6 | 0.6 | 7 | 48 | 240 | 0.11 |
| GE30ES GE30ES2RS | 30 | 47 | 22 | 40.7 | 0.6 | 0.6 | 6 | 62 | 310 | 0.14 |
| GE35ES GE35ES2RS | 35 | 55 | 25 | 47 | 0.6 | 1 | 6 | 80 | 400 | 0.22 |
| GE40ES GE40ES2RS | 40 | 62 | 28 | 53 | 0.6 | 1 | 7 | 100 | 500 | 0.3 |
| GE45ES GE45ES2RS | 45 | 68 | 32 | 60 | 0.6 | 1 | 7 | 127 | 640 | 0.4 |
| GE50ES GE50ES2RS | 50 | 75 | 35 | 66 | 0.6 | 1 | 6 | 156 | 780 | 0.54 |
| GE60ES GE60ES2RS | 60 | 90 | 44 | 80 | 1 | 1 | 6 | 245 | 1220 | 1 |
| GE70ES GE70ES2RS | 70 | 105 | 49 | 92 | 1 | 1 | 6 | 315 | 1560 | 1.5 |
| GE80ES GE80ES2RS | 80 | 120 | 55 | 105 | 1 | 1 | 6 | 400 | 2000 | 2.2 |
| GE90ES GE90ES2RS | 90 | 130 | 60 | 115 | 1 | 1 | 5 | 490 | 2450 | 2.7 |
| GE100ES GE100ES2RS | 100 | 150 | 70 | 130 | 1 | 1 | 7 | 610 | 3050 | 4.3 |
| GE110ES GE110ES2RS | 110 | 160 | 70 | 140 | 1 | 1 | 6 | 655 | 3250 | 4.7 |
| GE120ES GE120ES2RS | 120 | 180 | 85 | 160 | 1 | 1 | 6 | 950 | 4750 | 8 |
| GE140ES GE140ES2RS | 140 | 210 | 90 | 180 | 1 | 1 | 7 | 1080 | 5400 | 11 |
| GE160ES GE160ES2RS | 160 | 230 | 105 | 200 | 1 | 1 | 8 | 1360 | 6800 | 14 |

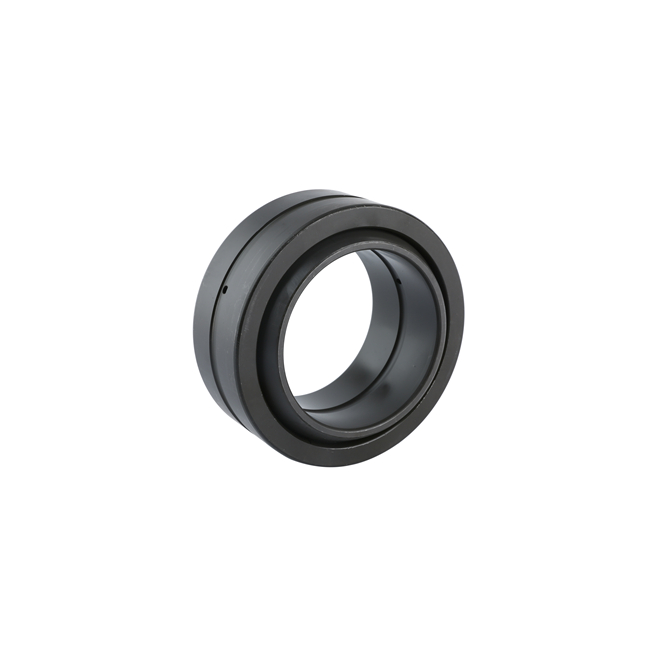

-Outer ring with single split in axial direction.
-Lubricating grooves and holes in the outer and inner rings of type ES.
-Outer ring of type-2RS with lip seals in both sides.
-Both outer and inner rings are properly phosphate treated.
|
|
| Bearing No. | Dimensions mm | Load ratings kN | Weight | |||||||
| d | D | B | dk | R1s | R2s | a | dyn | stat | kg | |
| min | min | ≈ | C | C0 | ||||||
| GE6E | 6 | 14 | 6 | 10 | 0.3 | 0.3 | 13 | 3.4 | 17 | 0.004 |
| GE8E | 8 | 16 | 8 | 13 | 0.3 | 0.3 | 15 | 5.5 | 27.5 | 0.007 |
| GE10E | 10 | 19 | 9 | 16 | 0.3 | 0.3 | 12 | 8.15 | 40.5 | 0.011 |
| GE12E | 12 | 22 | 10 | 18 | 0.3 | 0.3 | 11 | 10.8 | 54 | 0.016 |
| GE15ES GE15ES2RS | 15 | 26 | 12 | 22 | 0.3 | 0.3 | 8 | 17 | 85 | 0.025 |
| GE16ES GE16ES2RS | 16 | 30 | 14 | 25 | 0.3 | 0.3 | 10 | 21.2 | 106 | 0.041 |
| GE17ES GE17ES2RS | 17 | 30 | 14 | 25 | 0.3 | 0.3 | 10 | 21.2 | 106 | 0.041 |
| GE20ES GE20ES2RS | 20 | 35 | 16 | 29 | 0.6 | 0.3 | 9 | 30 | 146 | 0.061 |
| GE25ES GE25ES2RS | 25 | 42 | 20 | 35.5 | 0.6 | 0.6 | 7 | 48 | 240 | 0.11 |
| GE30ES GE30ES2RS | 30 | 47 | 22 | 40.7 | 0.6 | 0.6 | 6 | 62 | 310 | 0.14 |
| GE35ES GE35ES2RS | 35 | 55 | 25 | 47 | 0.6 | 1 | 6 | 80 | 400 | 0.22 |
| GE40ES GE40ES2RS | 40 | 62 | 28 | 53 | 0.6 | 1 | 7 | 100 | 500 | 0.3 |
| GE45ES GE45ES2RS | 45 | 68 | 32 | 60 | 0.6 | 1 | 7 | 127 | 640 | 0.4 |
| GE50ES GE50ES2RS | 50 | 75 | 35 | 66 | 0.6 | 1 | 6 | 156 | 780 | 0.54 |
| GE60ES GE60ES2RS | 60 | 90 | 44 | 80 | 1 | 1 | 6 | 245 | 1220 | 1 |
| GE70ES GE70ES2RS | 70 | 105 | 49 | 92 | 1 | 1 | 6 | 315 | 1560 | 1.5 |
| GE80ES GE80ES2RS | 80 | 120 | 55 | 105 | 1 | 1 | 6 | 400 | 2000 | 2.2 |
| GE90ES GE90ES2RS | 90 | 130 | 60 | 115 | 1 | 1 | 5 | 490 | 2450 | 2.7 |
| GE100ES GE100ES2RS | 100 | 150 | 70 | 130 | 1 | 1 | 7 | 610 | 3050 | 4.3 |
| GE110ES GE110ES2RS | 110 | 160 | 70 | 140 | 1 | 1 | 6 | 655 | 3250 | 4.7 |
| GE120ES GE120ES2RS | 120 | 180 | 85 | 160 | 1 | 1 | 6 | 950 | 4750 | 8 |
| GE140ES GE140ES2RS | 140 | 210 | 90 | 180 | 1 | 1 | 7 | 1080 | 5400 | 11 |
| GE160ES GE160ES2RS | 160 | 230 | 105 | 200 | 1 | 1 | 8 | 1360 | 6800 | 14 |
-Outer ring with single split in axial direction.
-Lubricating grooves and holes in the outer and inner rings of type ES.
-Outer ring of type-2RS with lip seals in both sides.
-Both outer and inner rings are properly phosphate treated.
