Spherical Plain Bearings
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
|

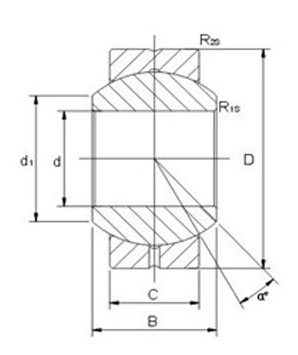

| Bearing No. | Dimensions mm | Load Ratings kN | Weight kg | ||||||||
| d | D | B | C | d1 | R1s | R2s | α | dyn | stat | ||
| min | min | min | ≈ | C | C0 | ||||||
| GEBJ5S | 5 | 13 | 8 | 6 | 7.7 | 0.3 | 0.3 | 13 | 3.2 | 9 | 0.007 |
| GEBJ6S | 6 | 16 | 9 | 6.8 | 9 | 0.3 | 0.3 | 13 | 4.1 | 12 | 0.01 |
| GEBJ8S | 8 | 19 | 12 | 9 | 10 | 0.3 | 0.3 | 13 | 6.5 | 20 | 0.016 |
| GEBJ10S | 10 | 22 | 14 | 11 | 13 | 0.3 | 0.6 | 13 | 9.6 | 28 | 0.031 |
| GEBJ12S | 12 | 26 | 16 | 12 | 15 | 0.3 | 0.6 | 13 | 12 | 37 | 0.055 |
| GEBJ14S | 14 | 28 | 19 | 14 | 17 | 0.3 | 0.6 | 15 | 16 | 49 | 0.078 |
| GEBJ16S | 16 | 32 | 21 | 15 | 19 | 0.3 | 0.6 | 15 | 20 | 61 | 0.095 |
| GEBJ18S | 18 | 35 | 23 | 17 | 22 | 0.3 | 0.6 | 15 | 25 | 74 | 0.14 |
| GEBJ20S | 20 | 40 | 25 | 18 | 24 | 0.3 | 0.6 | 15 | 30 | 89 | 0.18 |
| GEBJ22S | 22 | 42 | 28 | 20 | 26 | 0.3 | 0.6 | 15 | 36 | 108 | 0.21 |
| GEBJ25S | 25 | 47 | 31 | 22 | 30 | 0.6 | 0.6 | 15 | 45 | 130 | 0.35 |
| GEBJ30S | 30 | 55 | 37 | 25 | 35 | 0.6 | 0.6 | 15 | 61 | 178 | 0.56 |

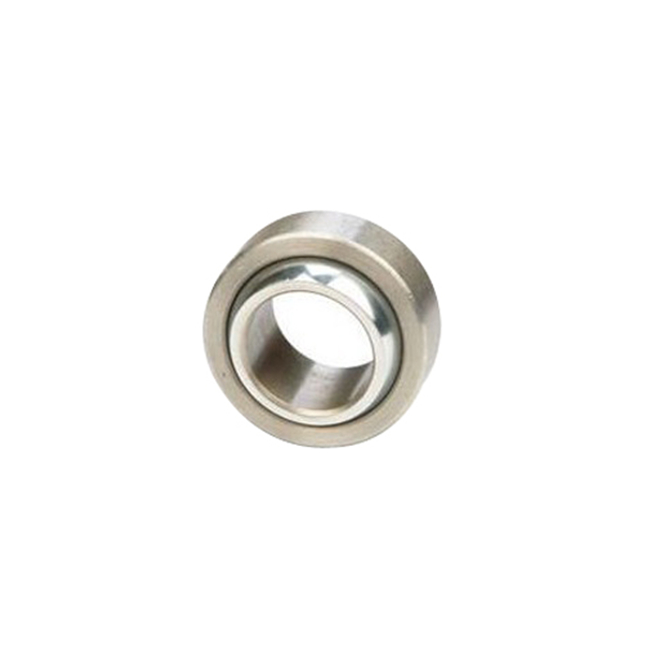

-Outer ring pressed around inner ring.
-With lubricating groove and holes in the outer ring.
|
|
| Bearing No. | Dimensions mm | Load Ratings kN | Weight kg | ||||||||
| d | D | B | C | d1 | R1s | R2s | α | dyn | stat | ||
| min | min | min | ≈ | C | C0 | ||||||
| GEBJ5S | 5 | 13 | 8 | 6 | 7.7 | 0.3 | 0.3 | 13 | 3.2 | 9 | 0.007 |
| GEBJ6S | 6 | 16 | 9 | 6.8 | 9 | 0.3 | 0.3 | 13 | 4.1 | 12 | 0.01 |
| GEBJ8S | 8 | 19 | 12 | 9 | 10 | 0.3 | 0.3 | 13 | 6.5 | 20 | 0.016 |
| GEBJ10S | 10 | 22 | 14 | 11 | 13 | 0.3 | 0.6 | 13 | 9.6 | 28 | 0.031 |
| GEBJ12S | 12 | 26 | 16 | 12 | 15 | 0.3 | 0.6 | 13 | 12 | 37 | 0.055 |
| GEBJ14S | 14 | 28 | 19 | 14 | 17 | 0.3 | 0.6 | 15 | 16 | 49 | 0.078 |
| GEBJ16S | 16 | 32 | 21 | 15 | 19 | 0.3 | 0.6 | 15 | 20 | 61 | 0.095 |
| GEBJ18S | 18 | 35 | 23 | 17 | 22 | 0.3 | 0.6 | 15 | 25 | 74 | 0.14 |
| GEBJ20S | 20 | 40 | 25 | 18 | 24 | 0.3 | 0.6 | 15 | 30 | 89 | 0.18 |
| GEBJ22S | 22 | 42 | 28 | 20 | 26 | 0.3 | 0.6 | 15 | 36 | 108 | 0.21 |
| GEBJ25S | 25 | 47 | 31 | 22 | 30 | 0.6 | 0.6 | 15 | 45 | 130 | 0.35 |
| GEBJ30S | 30 | 55 | 37 | 25 | 35 | 0.6 | 0.6 | 15 | 61 | 178 | 0.56 |
-Outer ring pressed around inner ring.
-With lubricating groove and holes in the outer ring.
