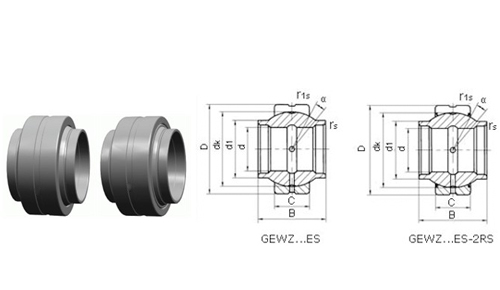

GEWZ..ES GEWZ..ES-2RS

Spherical Plain Bearing,GEWZ..ES,GEWZ..ES-2RS series

  • Spherical Plain Bearings
  • Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
  • Ningbo, China
  • Ningbo Lehonb Machinery Co.,Ltd
Quantity:

GEWZ..ES GEWZ..ES-2RS




Bearing No. Dimensions mm Load ratings kN  Weight

d D B C d1max dk rs r1s α° Dyn Stat Kg







min min C Co
GEWZ12ES 0.5 0.875 0.75 0.375 0.625 0.719 0.006 0.024 5 13 41 0.024
GEWZ15ES 0.625 1.0625 0.937 0.469 0.78 0.899 0.006 0.024 5 22 65 0.038
GEWZ19ES 0.75 1.25 1.125 0.562 0.92 1.08 0.012 0.024 5 31 95 0.064
GEWZ19ES-2RS 0.75 1.25 1.125 0.562 0.92 1.08 0.012 0.024 5 31 95 0.064
GEWZ22ES 0.875 1.4375 1.312 0.656 1.07 1.258 0.012 0.024 5 42 127 0.098
GEWZ22ES-2RS 0.875 1.4375 1.312 0.656 1.07 1.258 0.012 0.024 5 42 127 0.098
GEWZ25ES 1 1.625 1.5 0.75 1.22 1.437 0.012 0.024 5 56 166 0.142
GEWZ25ES-2RS 1 1.625 1.5 0.75 1.22 1.437 0.012 0.024 5 56 166 0.142
GEWZ31ES 1.25 210 1.875 0.937 1.525 1.795 0.024 0.024 5 86 260 0.271
GEWZ31ES-2RS 1.25 210 1.875 0.937 1.525 1.795 0.024 0.024 5 86 260 0.271
GEWZ34ES 1.375 2.1875 2.062 1.031 1.67 1.937 0.024 0.04 5 102 310 0.373
GEWZ34ES-2RS 1.375 2.1875 2.062 1.031 1.67 1.937 0.024 0.04 5 102 310 0.373
GEWZ38ES 1.5 2.4375 2.25 1.125 1.85 2.155 0.024 0.04 5 125 375 0.494
GEWZ38ES-2RS 1.5 2.4375 2.25 1.125 1.85 2.155 0.024 0.04 5 125 375 0.494
GEWZ44ES 1.75 2.8125 2.625 1.312 2.165 2.515 0.024 0.04 5 170 510 0.762
GEWZ44ES-2RS 1.75 2.8125 2.625 1.312 2.165 2.515 0.024 0.04 5 170 510 0.762
GEWZ50ES 2 3.1875 3 1.5 2.46 2.875 0.024 0.04 5 224 670 1.11
GEWZ50ES-2RS 2 3.1875 3 1.5 2.46 2.875 0.024 0.04 5 224 670 1.11
GEWZ57ES 2.25 3.5625 3.375 1.687 2.76 3.235 0.024 0.04 5 280 850 1.57
GEWZ57ES-2RS 2.25 3.5625 3.375 1.687 2.76 3.235 0.024 0.04 5 280 850 1.57
GEWZ63ES 2.5 3.9375 3.75 1.875 3.06 3.59 0.04 0.04 5 355 1060 2.15
GEWZ63ES-2RS 2.5 3.9375 3.75 1.875 3.06 3.59 0.04 0.04 5 355 1060 2.15
GEWZ69ES 2.75 4.375 4.125 2.062 3.38 3.95 0.04 0.04 5 415 1250 2.9
GEWZ69ES-2RS 2.75 4.375 4.125 2.062 3.38 3.95 0.04 0.04 5 415 1250 2.9
GEWZ76ES 3 4.75 4.5 2.25 3.675 4.312 0.04 0.04 5 500 1500 3.59
GEWZ76ES-2RS 3 4.75 4.5 2.25 3.675 4.312 0.04 0.04 5 500 1500 3.59
GEWZ82ES 3.25 5.125 4.875 2.437 3.985 4.675 0.04 0.04 5 585 1760 4.69
GEWZ82ES-2RS 3.25 5.125 4.875 2.437 3.985 4.675 0.04 0.04 5 585 1760 4.69
GEWZ88ES 3.5 5.5 5.25 2.625 4.3 5.04 0.04 0.04 5 680 2040 5.86
GEWZ88ES-2RS 3.5 5.5 5.25 2.625 4.3 5.04 0.04 0.04 5 680 2040 5.86




 -GEWZ...ES:As series GEEW...ES,but with inch dimensions.

 -GEWZ...ES-2RS:As series GEEW...ES-2RS,but with inch dimensions..
