Ball Joint
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
|

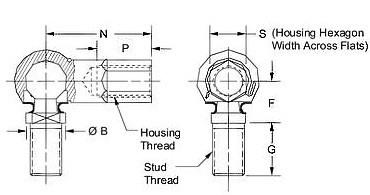

| Part No. | Thread | B | F | G | N | P | S | |
| DCM5 | SSDCM5 | M5 x 0.80 | 8 | 9 | 10.2 | 22 | 10.2 | 7 |
| DCM6 | SSDCM6 | M6 x 1.00 | 10 | 11 | 12.5 | 25 | 11.5 | 9 |
| DCM8 | SSDCM8 | M8 x 1.25 | 13 | 13 | 16.5 | 30 | 14 | 11 |
| DCM10 | SSDCM10 | M10 x 1.50 | 16 | 16 | 20 | 35 | 15.5 | 13 |
| DCM12 | SSDCM12 | M12 x 1.75 | 16 | 16 | 20 | 35 | 15.5 | 13 |
Material (Based on DIN 71802)
Housing: carbon steel
Ball Stud: carbon steel
Safety clip: Spring steel
Surface treatment: Zinc plate,passivated in white-blue or yellow
Stainless Ball Joint, Please add prefix 'ss'to the part no..
DCM Ball Joints are also conveniently available without stud for later assembly on to a pre-positioned stud.;
Compatible with Threaded Ball Studs or Riveted Studs.
|
|
| Part No. | Thread | B | F | G | N | P | S | |
| DCM5 | SSDCM5 | M5 x 0.80 | 8 | 9 | 10.2 | 22 | 10.2 | 7 |
| DCM6 | SSDCM6 | M6 x 1.00 | 10 | 11 | 12.5 | 25 | 11.5 | 9 |
| DCM8 | SSDCM8 | M8 x 1.25 | 13 | 13 | 16.5 | 30 | 14 | 11 |
| DCM10 | SSDCM10 | M10 x 1.50 | 16 | 16 | 20 | 35 | 15.5 | 13 |
| DCM12 | SSDCM12 | M12 x 1.75 | 16 | 16 | 20 | 35 | 15.5 | 13 |
Material (Based on DIN 71802)
Housing: carbon steel
Ball Stud: carbon steel
Safety clip: Spring steel
Surface treatment: Zinc plate,passivated in white-blue or yellow
Stainless Ball Joint, Please add prefix 'ss'to the part no..
DCM Ball Joints are also conveniently available without stud for later assembly on to a pre-positioned stud.;
Compatible with Threaded Ball Studs or Riveted Studs.
