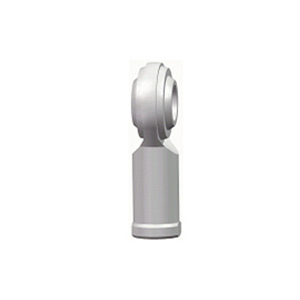

Inch Rod Ends
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Ningbo, China
Ningbo Lehonb Machinery Co.,Ltd
| Quantity: | |
|---|---|
|
|
| Part No. | Dimensions mm | Load Ratings kN | Weight | |||||||||||||||
| d | d3 | B | C1 | d1 | R1S | d2 | h1 | L3 | L4 | L5 | d4 | d5 | w | a | dyn | stat | kg | |
| 2B | min | ≈ | C | C0 | ||||||||||||||
| SIZJ4* | 4.826 | 10-32 | 7.92 | 5.94 | 7.8 | 0.3 | 15.88 | 26.97 | 12.7 | 34.93 | 4.75 | 7.54 | 10.31 | 7.92 | 10 | 3.6 | 6.8 | 0.018 |
| SIZJ6* | 6.35 | 1/4-28 | 9.53 | 6.35 | 8.4 | 0.3 | 19.05 | 33.32 | 15.88 | 42.85 | 4.75 | 9.15 | 11.91 | 9.53 | 13.5 | 5.4 | 9.6 | 0.023 |
| SIZJ7* | 7.938 | 5/16-24 | 11.1 | 7.92 | 11.4 | 0.3 | 22.23 | 34.93 | 15.88 | 46.02 | 4.75 | 10.72 | 12.7 | 11.10 | 11 | 8.5 | 12 | 0.036 |
| SIZJ9 | 9.525 | 3/8-24 | 12.7 | 9.12 | 13.1 | 0.6 | 25.4 | 41.28 | 19.05 | 53.98 | 6.35 | 13.89 | 17.45 | 14.27 | 11 | 11 | 16 | 0.059 |
| SIZJ11 | 11.11 | 7/16-20 | 14.27 | 10.31 | 14.9 | 0.6 | 28.58 | 46.02 | 22.23 | 60.33 | 6.35 | 15.49 | 19.05 | 15.88 | 10.5 | 14 | 21 | 0.082 |
| SIZJ12 | 12.7 | 1/2-20 | 15.88 | 11.5 | 17.7 | 0.6 | 33.32 | 53.98 | 25.4 | 70.64 | 6.35 | 18.67 | 22.23 | 19.05 | 10 | 18 | 28 | 0.132 |
| SIZJ15 | 15.88 | 5/8-18 | 19.05 | 12.29 | 21.3 | 0.6 | 38.1 | 63.5 | 31.75 | 85.55 | 7.92 | 21.84 | 25.4 | 22.23 | 13 | 23 | 29 | 0.195 |
| SIZJ19 | 19.05 | 3/4-16 | 22.23 | 15.06 | 24.8 | 0.6 | 44.45 | 73.03 | 34.93 | 95.25 | 7.92 | 25.02 | 28.58 | 25.4 | 12 | 34 | 44 | 0.295 |
-Rod body with right or left-hand male thread.
-Rod body pressed around inner ring.
-Surface of rod body zinc plated.
-In inch dimension series.
-For left-hand thread,please add surffix "L",e.g.SILZJ 15.
-Lubricating hole or grease nipple isn't available for sizes marked "*".
-When a grease nipple is required for other sizes,please use the sign SIZJ..S.
|
|
| Part No. | Dimensions mm | Load Ratings kN | Weight | |||||||||||||||
| d | d3 | B | C1 | d1 | R1S | d2 | h1 | L3 | L4 | L5 | d4 | d5 | w | a | dyn | stat | kg | |
| 2B | min | ≈ | C | C0 | ||||||||||||||
| SIZJ4* | 4.826 | 10-32 | 7.92 | 5.94 | 7.8 | 0.3 | 15.88 | 26.97 | 12.7 | 34.93 | 4.75 | 7.54 | 10.31 | 7.92 | 10 | 3.6 | 6.8 | 0.018 |
| SIZJ6* | 6.35 | 1/4-28 | 9.53 | 6.35 | 8.4 | 0.3 | 19.05 | 33.32 | 15.88 | 42.85 | 4.75 | 9.15 | 11.91 | 9.53 | 13.5 | 5.4 | 9.6 | 0.023 |
| SIZJ7* | 7.938 | 5/16-24 | 11.1 | 7.92 | 11.4 | 0.3 | 22.23 | 34.93 | 15.88 | 46.02 | 4.75 | 10.72 | 12.7 | 11.10 | 11 | 8.5 | 12 | 0.036 |
| SIZJ9 | 9.525 | 3/8-24 | 12.7 | 9.12 | 13.1 | 0.6 | 25.4 | 41.28 | 19.05 | 53.98 | 6.35 | 13.89 | 17.45 | 14.27 | 11 | 11 | 16 | 0.059 |
| SIZJ11 | 11.11 | 7/16-20 | 14.27 | 10.31 | 14.9 | 0.6 | 28.58 | 46.02 | 22.23 | 60.33 | 6.35 | 15.49 | 19.05 | 15.88 | 10.5 | 14 | 21 | 0.082 |
| SIZJ12 | 12.7 | 1/2-20 | 15.88 | 11.5 | 17.7 | 0.6 | 33.32 | 53.98 | 25.4 | 70.64 | 6.35 | 18.67 | 22.23 | 19.05 | 10 | 18 | 28 | 0.132 |
| SIZJ15 | 15.88 | 5/8-18 | 19.05 | 12.29 | 21.3 | 0.6 | 38.1 | 63.5 | 31.75 | 85.55 | 7.92 | 21.84 | 25.4 | 22.23 | 13 | 23 | 29 | 0.195 |
| SIZJ19 | 19.05 | 3/4-16 | 22.23 | 15.06 | 24.8 | 0.6 | 44.45 | 73.03 | 34.93 | 95.25 | 7.92 | 25.02 | 28.58 | 25.4 | 12 | 34 | 44 | 0.295 |
-Rod body with right or left-hand male thread.
-Rod body pressed around inner ring.
-Surface of rod body zinc plated.
-In inch dimension series.
-For left-hand thread,please add surffix "L",e.g.SILZJ 15.
-Lubricating hole or grease nipple isn't available for sizes marked "*".
-When a grease nipple is required for other sizes,please use the sign SIZJ..S.
