Safety Fastener-CFM

  • Fittings for Clevis Joint
  • Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
  • Ningbo, China
  • Ningbo Lehonb Machinery Co.,Ltd
Quantity:

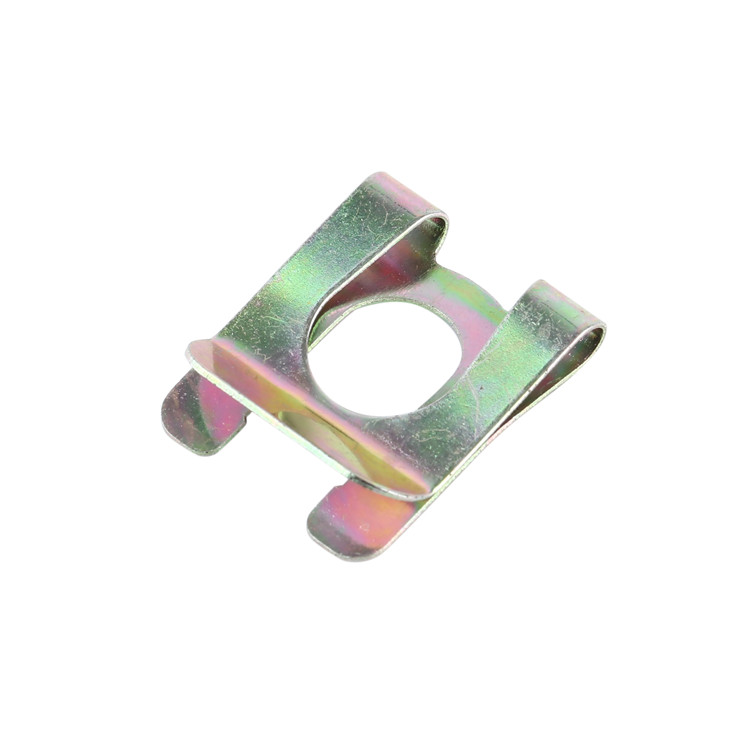

Safety Fastener-CFM - LEHONB


Safety Fastener-CFM

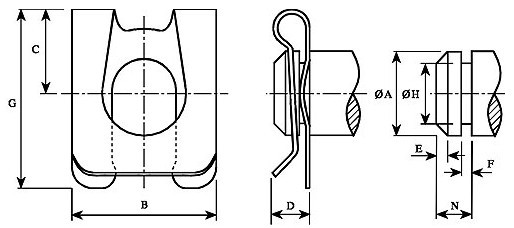

Part No.  Ø A B C D E F G Ø H N Weight /100pcs  in Kgs
 CFM4 4.00 7 4.0 2.2 0.50 0.74 8.75 3.2 2.1 0.02
3.93 0.64 3.1 1.9
 CFM5 5.00 9 4.5 2.3 0.50 0.84 11.00 4.1 2.6 0.03
4.93 0.64 3.9 2.4
 CFM6 6.00 11 6.0 3.3 0.75 0.84 14.25 5.1 3.1 0.07
5.93 0.64 4.9 2.9
 CFM8 8.00 14 8.0 3.5 1.00 1.04 17.25 6.1 3.6 0.11
7.91 0.84 5.9 3.4
 CFM10 10.00 18 10.3 4.6 1.00 1.15 21.75 8.2 4.6 0.21
9.91 0.95 7.8 4.4
 CFM12 12.00 22 12.0 4.6 1.25 1.25 25.50 9.7 5.1 0.29
11.89 1.05 8.8 4.9



Material: Spring steel 65Mn,hardened and tempered

Surface protection: Zinc plate,passivated in yellow or white

Easily assembled by hand with tools

For use with cotter bolts

Dimensions are in mm

Inch series are also available
